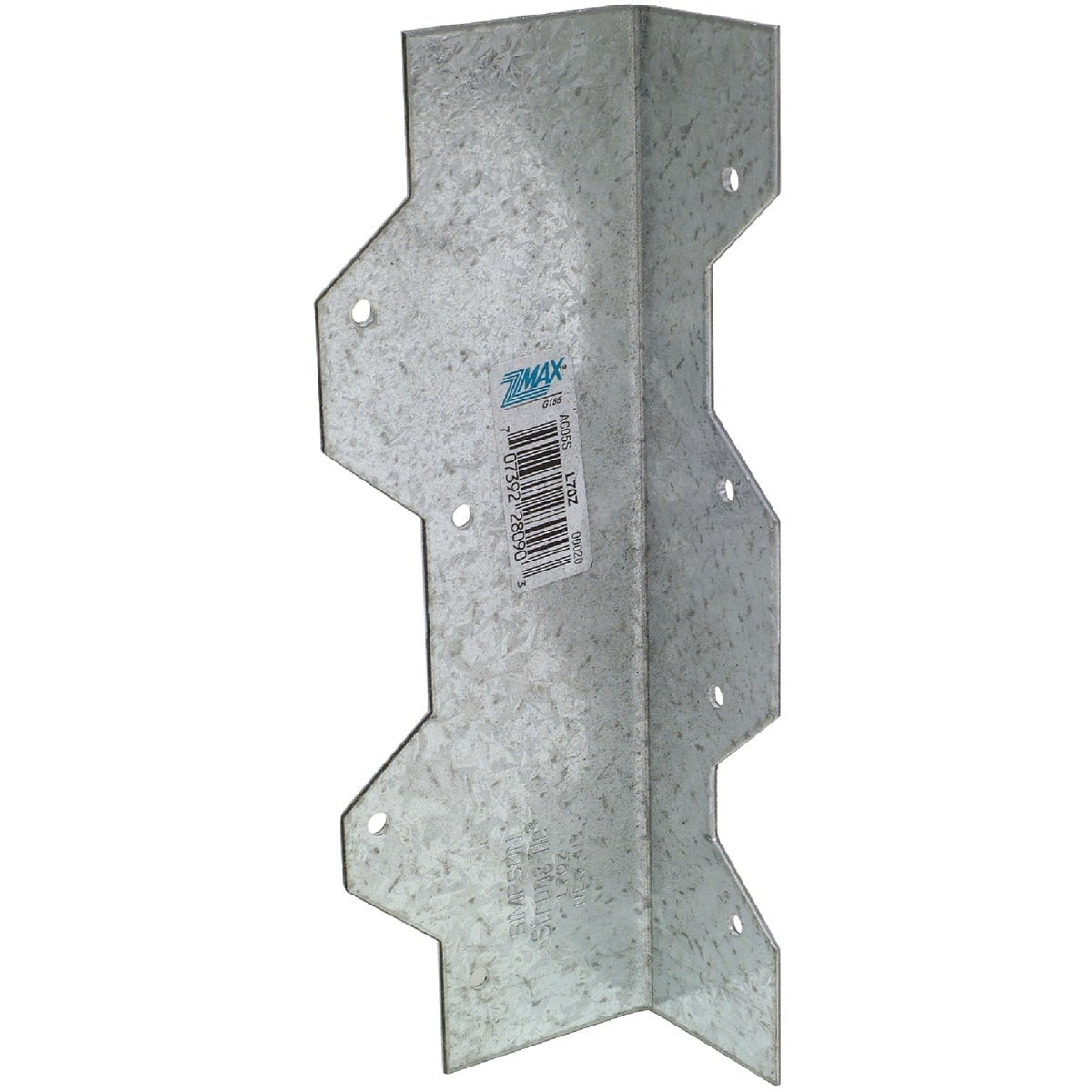

Simpson Strong-tie L70Z Reinforcing L-angle Connector

Product Description

The SIMPSON STRONG-TIE L70Z is a reinforcing L-angle connector used to strengthen angle connections in wood framing applications. Fabricated from 16-gauge galvanized steel, this connector delivers a stronger load path than a standard toe-nailed connection. The staggered nail pattern is engineered to reduce the likelihood of wood splitting during fastener installation. Sold individually, it is a standard trade hardware item installed by framers, general contractors, and structural carpenters wherever code-compliant angle reinforcement is required.

This connector is suited for residential and light commercial wood framing where angular connections between structural members need reinforcement. Common install locations include wall-to-plate connections, rafter ties, joist-to-beam intersections, and post-to-beam connections. The L-angle profile seats flush against both mating surfaces, allowing standard fasteners to drive straight without the risk of toe-nailing splits. The ZMAX coating option is available on select sizes in this product family for applications requiring enhanced corrosion resistance.

Key Features

• 16-gauge galvanized steel construction for structural rigidity and corrosion resistance
• Staggered nail pattern reduces wood splitting during fastener installation
• Stronger load transfer than a standard toe-nailed connection
• L-angle profile allows flush seating against both mating framing members
• ZMAX coating available on select sizes for enhanced corrosion protection

Compatibility

Designed as an OEM-style reinforcing connector for standard dimensional lumber framing applications in residential and light commercial construction.

Installation Notes

Installation is performed by framers or structural carpenters using standard framing nails or structural screws specified by the connector manufacturer. Fasten both legs of the connector fully before loading the connection. Follow applicable building codes, including IBC and IRC requirements for connector fastening schedules. Verify that the selected fastener type and quantity meet the engineered load ratings for the connection.
