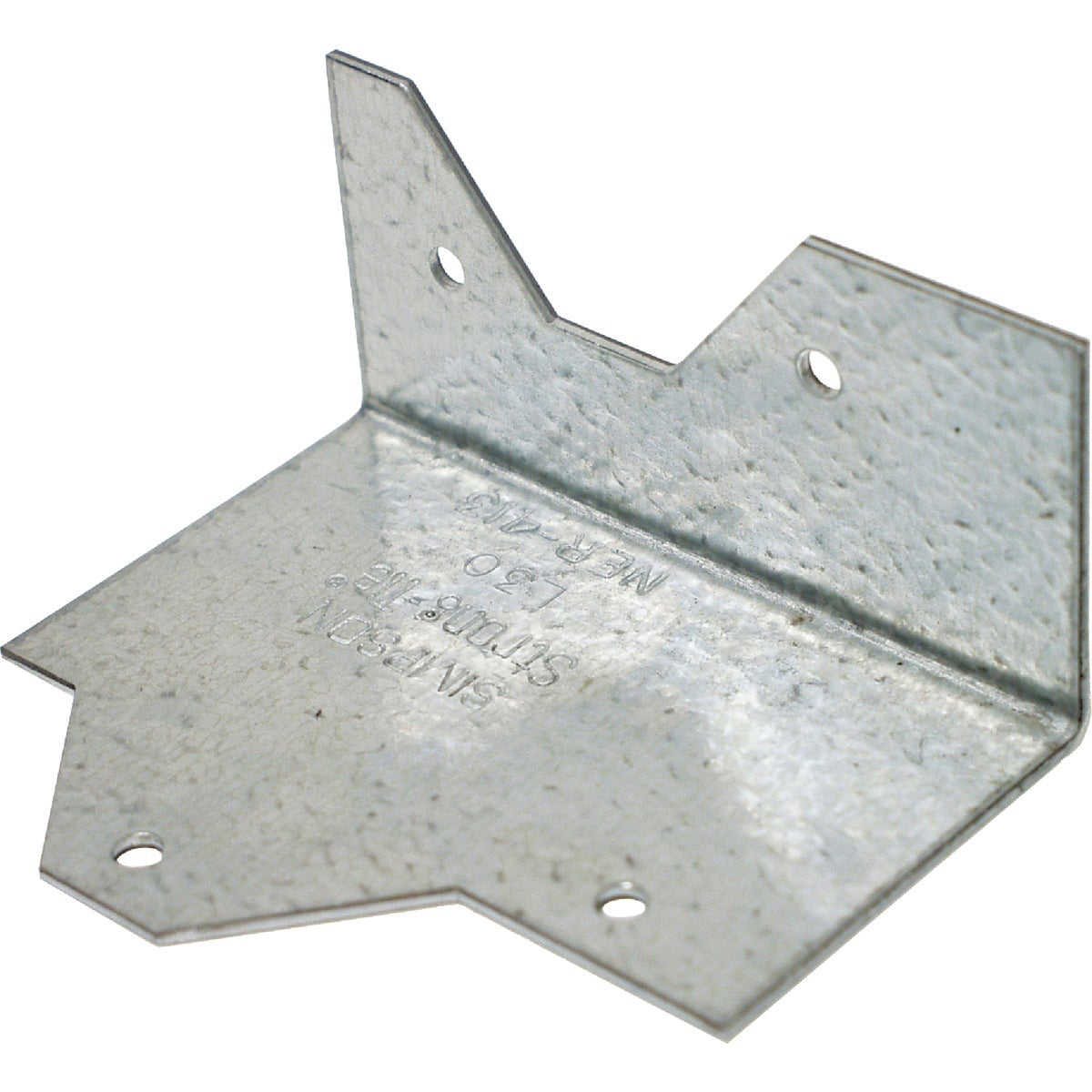

Simpson Strong-tie L30 Reinforcing L-angle Connector

Product Description

The SIMPSON STRONG-TIE L30 is a 16-gauge galvanized steel reinforcing L-angle connector designed to strengthen angle connections in wood framing applications. It delivers a stronger connection than traditional toe-nailing by distributing load across a staggered nail pattern that also reduces the risk of wood splitting during fastening. Licensed contractors, framers, and structural carpenters install this connector where code-compliant angle reinforcement is required. At 0.15 pounds per unit, the L30 is a lightweight but structurally capable hardware solution suited for high-volume framing work.

The L30 is used in residential and light commercial wood-frame construction wherever two members meet at an angle and require mechanical reinforcement. Typical applications include wall framing, joist connections, rafter ties, and general angle bracing. The staggered nail hole pattern is engineered to keep fasteners away from the wood grain lines most prone to splitting, making it practical for use with standard framing lumber.

Key Features

• 16-gauge galvanized steel construction for corrosion resistance in standard framing environments
• Staggered nail pattern reduces wood splitting during installation
• Provides a stronger connection than toe-nailed joints
• Lightweight at 0.15 pounds per unit, suitable for high-volume applications
• Some sizes in the L-angle series are available with ZMAX coating for enhanced corrosion protection

Compatibility

Designed as an OEM-style reinforcing connector for standard dimensional lumber angle connections in residential and light commercial wood-frame construction.

Installation Notes

Installation is performed by licensed framers or general contractors following applicable building codes. Fasten using the nail size and count specified on the connector or in the current SIMPSON STRONG-TIE load table for this product family. Do not substitute fastener types or reduce fastener count, as doing so will affect rated load capacity. Follow all local building code requirements, including any inspection hold points required before concealing connections.
