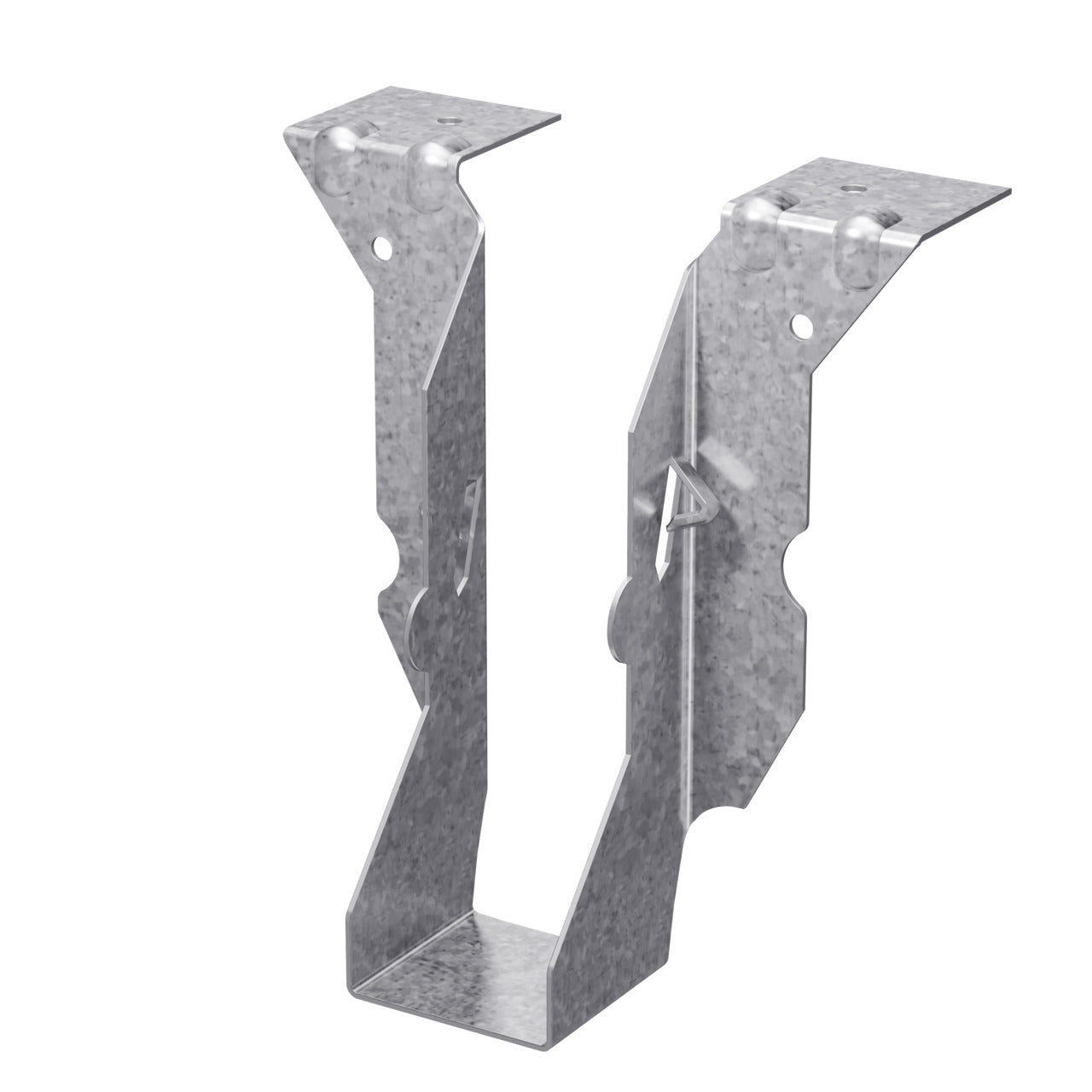

Simpson Strong-Tie JB28 Light Joist Hanger 50/CT

Product Description

The Simpson Strong-Tie JB28 Light Joist Hanger is a durable framing connector used to support joists, rafters, or beams. This top-flange joist hanger has dimensions of one and one-half inches by one and nine-sixteenths inches by seven and one-fourth inches, made with eighteen gauge steel. It is designed to create a strong connection ensuring stability in your construction projects.

• Cost-effective design to support structural elements
• Manufactured with G90 galvanized steel for corrosion resistance
• Offers flexibility with maximum joist nailing options

Product Highlights

Ideal for applications where sturdy joist support is needed, the JB Series supports a variety of engineering needs and is easy to install.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137JB28

Technical Specifications

• Material: Steel
• Finish: G90 Galvanized
• Gauge: 18
• Fastener Size: (4) 0.148 x 3 in (Header), (2) Prong (Joist)
• Load Capacity: SPF/HF Allowable Loads: Floor (100) 820 lb, Snow (115) 820 lb, Roof (125) 820 lb; DF/SP Allowable Loads: Floor (100) 955 lb, Snow (115) 955 lb, Roof (125) 955 lb
