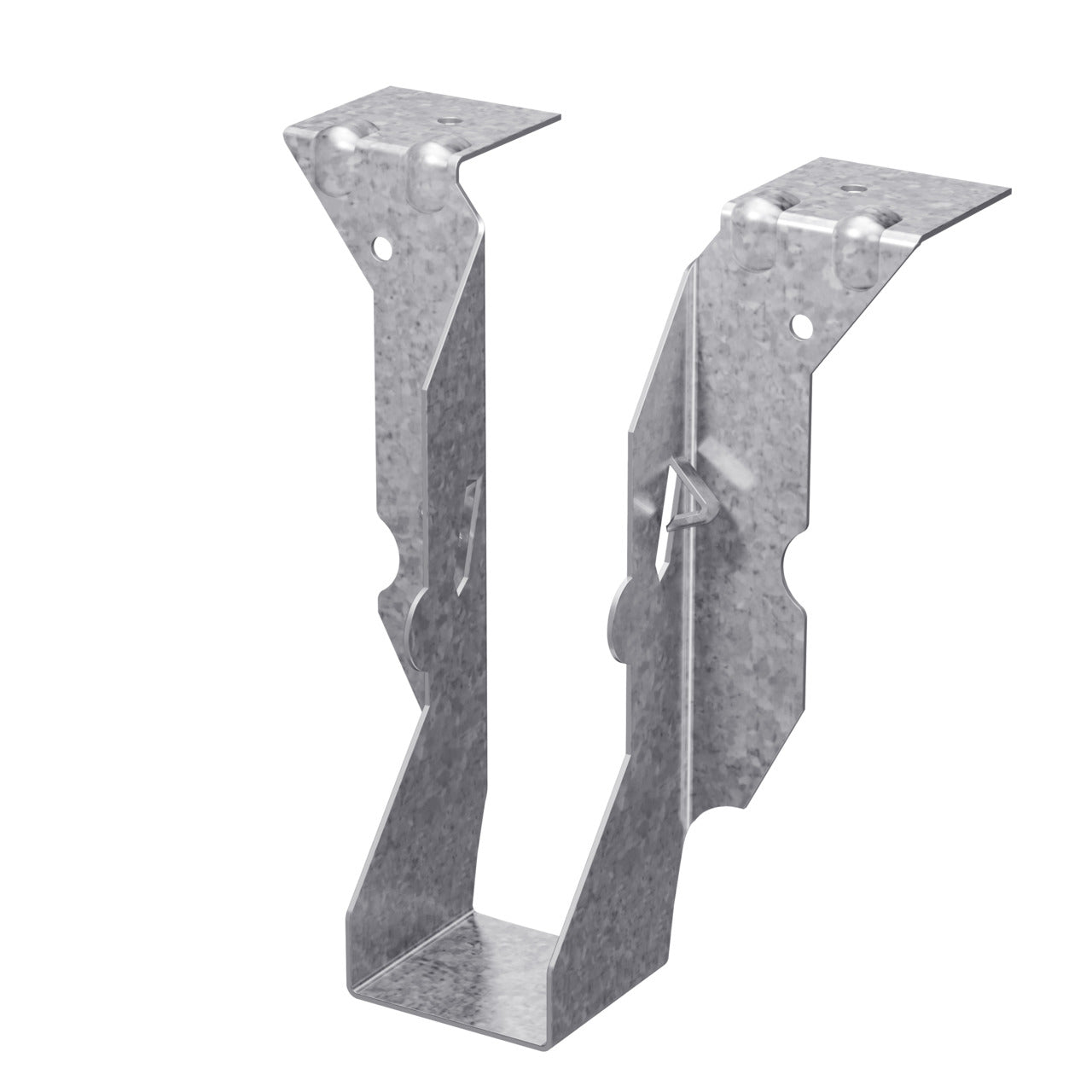

Simpson Strong-Tie JB26 Joist Hanger 1-1/2 x 1-9/16 x 5-3/8 18 ga

Product Description

Simpson Strong-Tie JB26 is a joist hanger made from steel, designed for strong connections in construction. It is suitable for attaching the bottom plate or sill plate to a newly poured concrete foundation. The JB Series features a cost-effective design with options for minimum and maximum joist nailing. This product is industry tested to provide reliable support for joists, rafters, or beams.

• Made from durable steel
• Features options for joist nailing
• Designed for versatile installation applications

Product Highlights

This joist hanger is designed for structural integrity and is ideal for various framing projects.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: JB26

Technical Specifications

• Finish: G90 Galvanized
• Material: Steel
• Gauge: 18
• Fastener Size: (4) 0.148 x 3 inches (Header), (2) Prong (Joist)
• Load Specifications: SPF/HF Allowable Loads: Floor (100) 815 lb, Snow (115) 815 lb, Roof (125) 815 lb; DF/SP Allowable Loads: Floor (100) 995 lb, Snow (115) 995 lb, Roof (125) 995 lb
