Simpson Strong-Tie IUS25695 Face-Mount I-Joist Hanger

Product Description

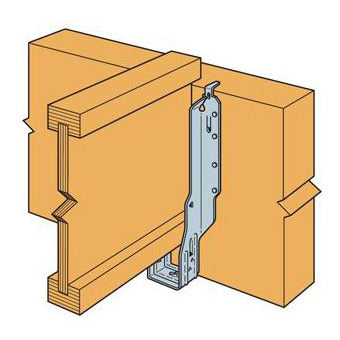

The Simpson Strong-Tie IUS25695 is a face-mount I-Joist hanger designed to support I-Joists in framing applications. This hybrid hanger combines benefits from both face-mount and top-mount systems to ensure secure installations. Using a Strong-Grip seat, it allows for quick installation with easy-to-reach face nails and self-jigging locator tabs.

• Hybrid design for flexibility in installation
• Self-jigging locator tabs simplify alignment
• Tested to ANSI/ISEA 121-2018 standards

Product Highlights

This product is suitable for various lifting and support applications, providing reliable reinforcement for your framing projects while adhering to industry standards.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137IUS25695

Technical Specifications

• Material: Steel
• Gauge: 18
• Finish: Galvanized
• Fastener Size: (8) 0.148 x 3 inches (Face)
• Allowable Loads (DF/SP): Uplift (160) 70 lb, Floor (100) 950 lb, Snow (115) 1080 lb, Roof (125) 1165 lb
• Allowable Loads (SPF/HF): Floor (100) 815 lb, Snow (115) 925 lb, Roof (125) 1000 lb
