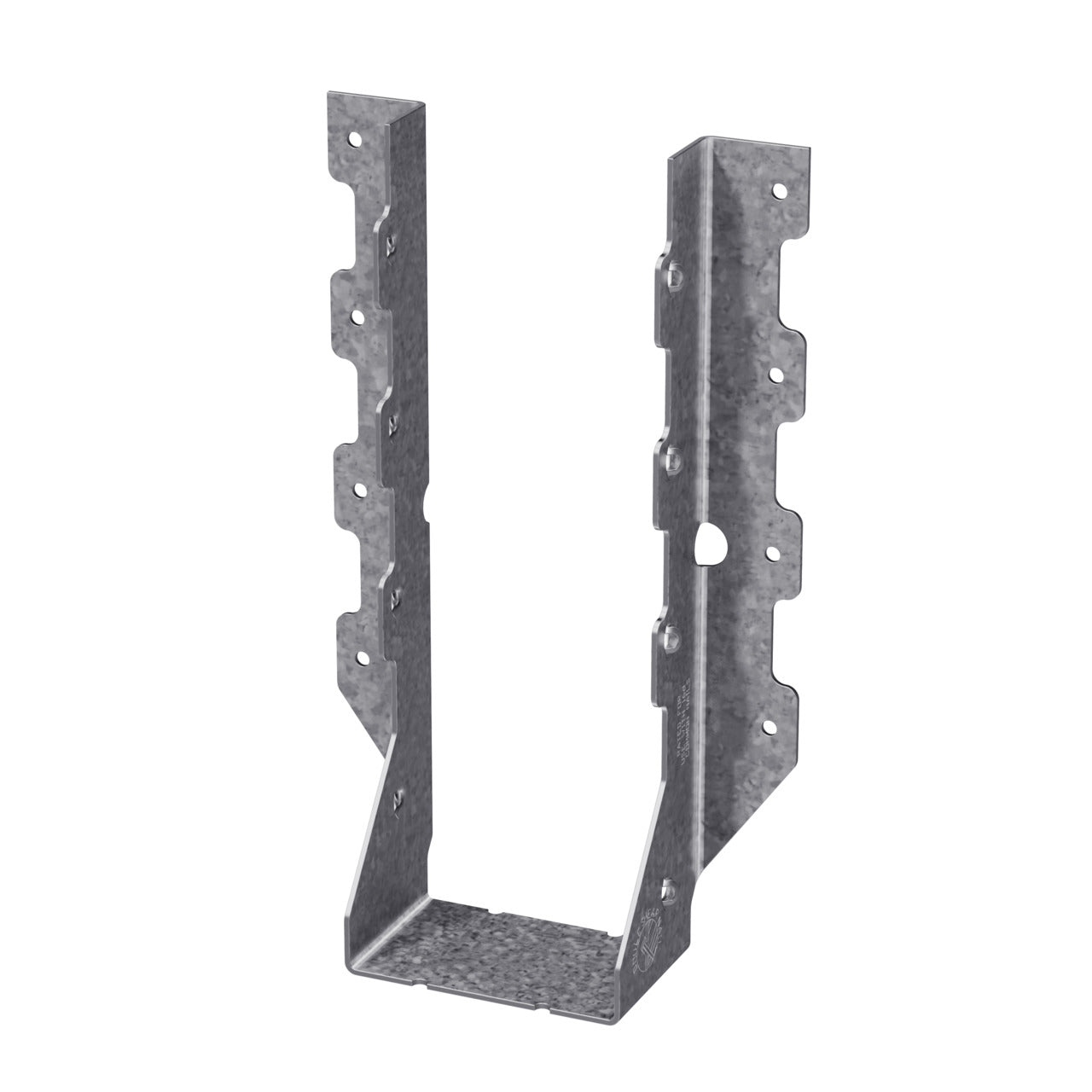

Simpson Strong-Tie HUS2102 Double-Shear Face-Mount Joist Hanger 14 ga

Product Description

The Simpson Strong-Tie HUS2102 is a double-shear face-mount joist hanger suitable for various building projects. This hanger features double shear nailing, which distributes the load across two points on each joist nail, providing increased strength and stability.

• Double shear nailing for enhanced strength.
• Compatible with standard nails for quick installation.
• Slotted design enables truss deflection without affecting the load on supporting walls.

Product Highlights

This joist hanger is designed for easy assembly and is ideal for framing applications, allowing builders to meet structural requirements efficiently.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: HUS2102

Technical Specifications

• Load Capacity: Uplift (160) 2810 lb, Floor (100) 1815 lb, Snow (115) 2050 lb, Roof (125) 2215 lb
• Gauge: 14
• Finish: G90 Galvanized
• Fastener Size: (8) 0.162 x 3-1/2 in (Header), (8) 0.162 x 3-1/2 in (Joist)
• Nominal Product Depth: 0
