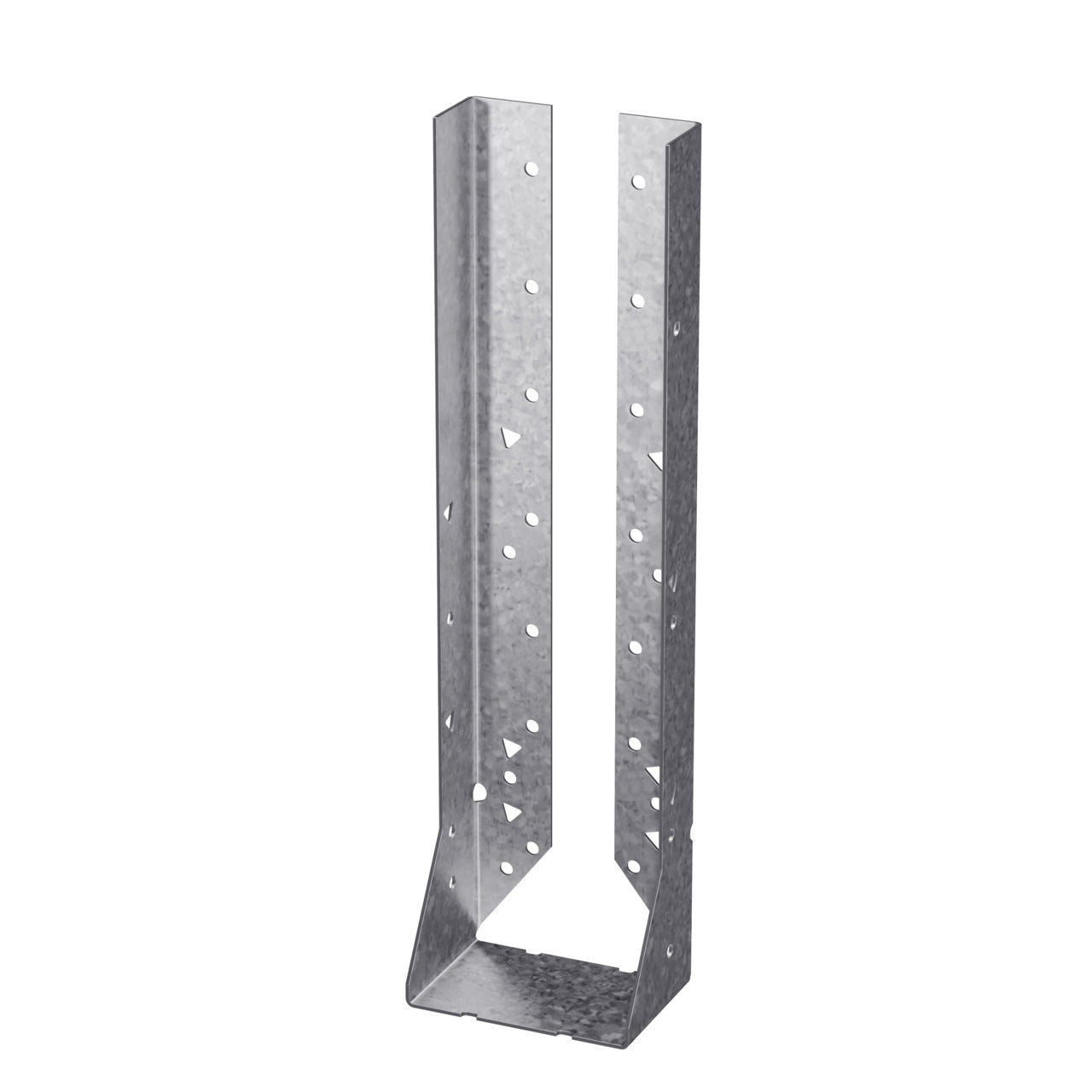

Simpson Strong-Tie HUC416 Heavy Duty Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie HUC416 is a heavy-duty face-mount joist hanger designed for strong connections between joists and headers. This product is ideal for applications that require additional strength and safety, such as in schools and similar structures. The HUC416 includes features that enhance its load-bearing capabilities.

• Extra optional triangle holes for increased load capacity.
• Tested and load-rated for structural compliance.
• Corrosion-resistant material for long-lasting performance.

Product Highlights

The HUC Series hangers provide reliable support and have been engineered for heavy-duty connections.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: HUC416

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Gauge: 14
• Fastener Size: (20) 1/4 x 2-3/4 in (GFCMU Titen 2), (20) 1/4 x 1-3/4 in (Concrete Titen 2), (8) 0.148 x 3 in (Joist)
• Load Rating: GFCMU - Uplift (160) 1515 lb, Down (100/125) 4920 lb; Concrete - Uplift (160) 1515 lb, Down (100/125) 4920 lb
