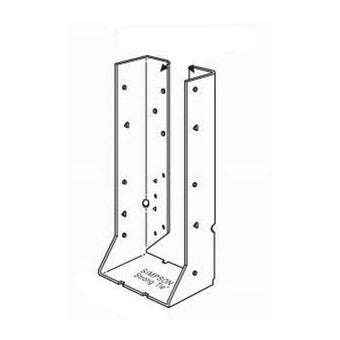

Simpson Strong-Tie HUC282 Heavy Duty Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie HUC282 is a heavy-duty face-mount joist hanger designed for strong and secure connections in various construction projects. Suitable for applications requiring extra strength, this model is made from steel and features a galvanized finish.

• Compatible with both triangle and round hole fasteners.
• Achieves maximum loads when filled with common nails.
• Ideal for use in schools and structures demanding high safety standards.

Product Highlights

Designed to meet stringent building requirements while ensuring longevity and structural integrity.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137HUC282

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Load Specifications: DF/SP Allowable Loads - Uplift (160) 760 lb, Down (100/125) 2500 lb; Concrete - Uplift (160) 760 lb, Down (100/125) 3725 lb
• Gauge: 14
• Fastener Size: (10) 1/4 x 2-3/4 in (GFCMU Titen 2), (10) 1/4 x 1-3/4 in (Concrete Titen 2), (4) 0.148 x 3 in (Joist)
• Nominal Product Depth: 0 inches
