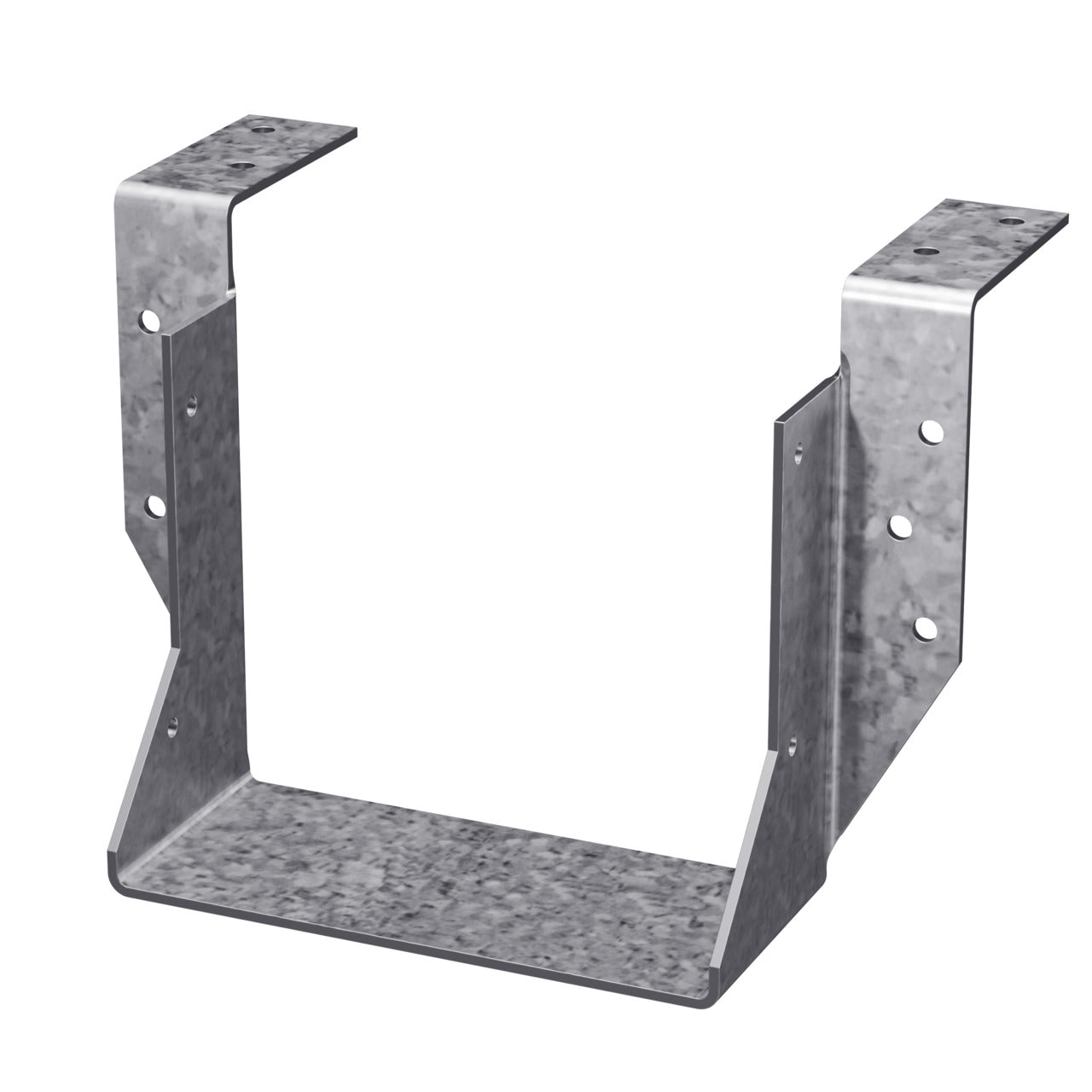

Simpson Strong-Tie HU66TF HUTF Series 2-1/2 x 5-1/2 x 5-3/8 12 ga Heavy Duty Top-Flange Joist Hanger

Product Description

The Simpson Strong-Tie HU66TF is a heavy-duty top-flange joist hanger designed for secure and reliable installations. This product is engineered to distribute load effectively using double-shear nailing. It offers strength by transferring the joist load through two points on each nail. This design reduces the risk of wood splitting and enhances overall structural integrity.

• Constructed from galvanized steel for increased durability.
• Designed for use in demanding applications, such as schools and commercial buildings.
• Accommodates header and joist fasteners for optimal performance.

Product Highlights

The HU66TF joist hanger is suitable for various framing applications requiring additional strength and safety, making it ideal for heavy load designs.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: HU66TF

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Gauge: 12
• Application: For schools and structures requiring additional strength
• Load Capacity: Uplift (160) 945 lb, Floor (100) 2785 lb, Snow (115) 2785 lb, Roof (125) 2785 lb
• Fastener Size: (10) 0.162 x 3-1/2 in (Header), (4) 0.162 x 3-1/2 in (Joist)
