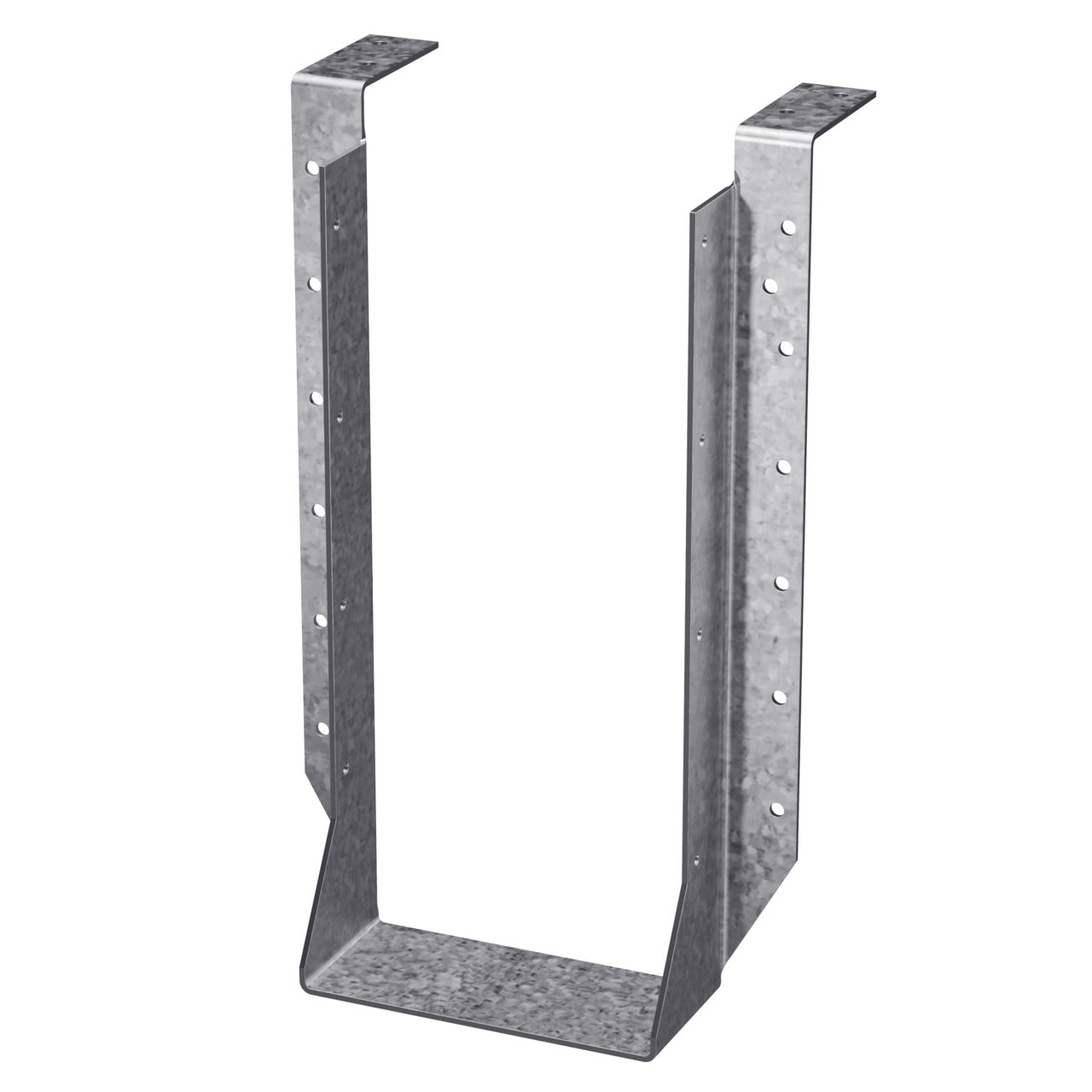

Simpson Strong-Tie HU614TF Heavy Duty Top-Flange Joist Hanger

Product Description

The Simpson Strong-Tie HU614TF is a heavy-duty top-flange joist hanger made for strength and reliability. This product is specifically designed for overhead construction projects, providing a strong connection for joists.

• Concealed flange for cleaner lines in exposed areas
• Engineered to reduce wood splitting
• Suitable for home projects and compliance with building codes

Product Highlights

The HU614TF is ideal for use in schools and other structures requiring robust support.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137HU614TF

Technical Specifications

• Finish: Galvanized
• Material: Steel
• Gauge: 12
• Application: Suitable for structures needing additional strength
• Load Capacities: Uplift (160) 1560 lb, Floor (100) 4030 lb, Snow (115) 4030 lb, Roof (125) 4030 lb
• Fastener Size: (18) 0.162 x 3-1/2 in (Header), (8) 0.162 x 3-1/2 in (Joist)
• Dimensions: Width 5-1/2 inches, Height 13 inches, Depth 2-1/2 inches
