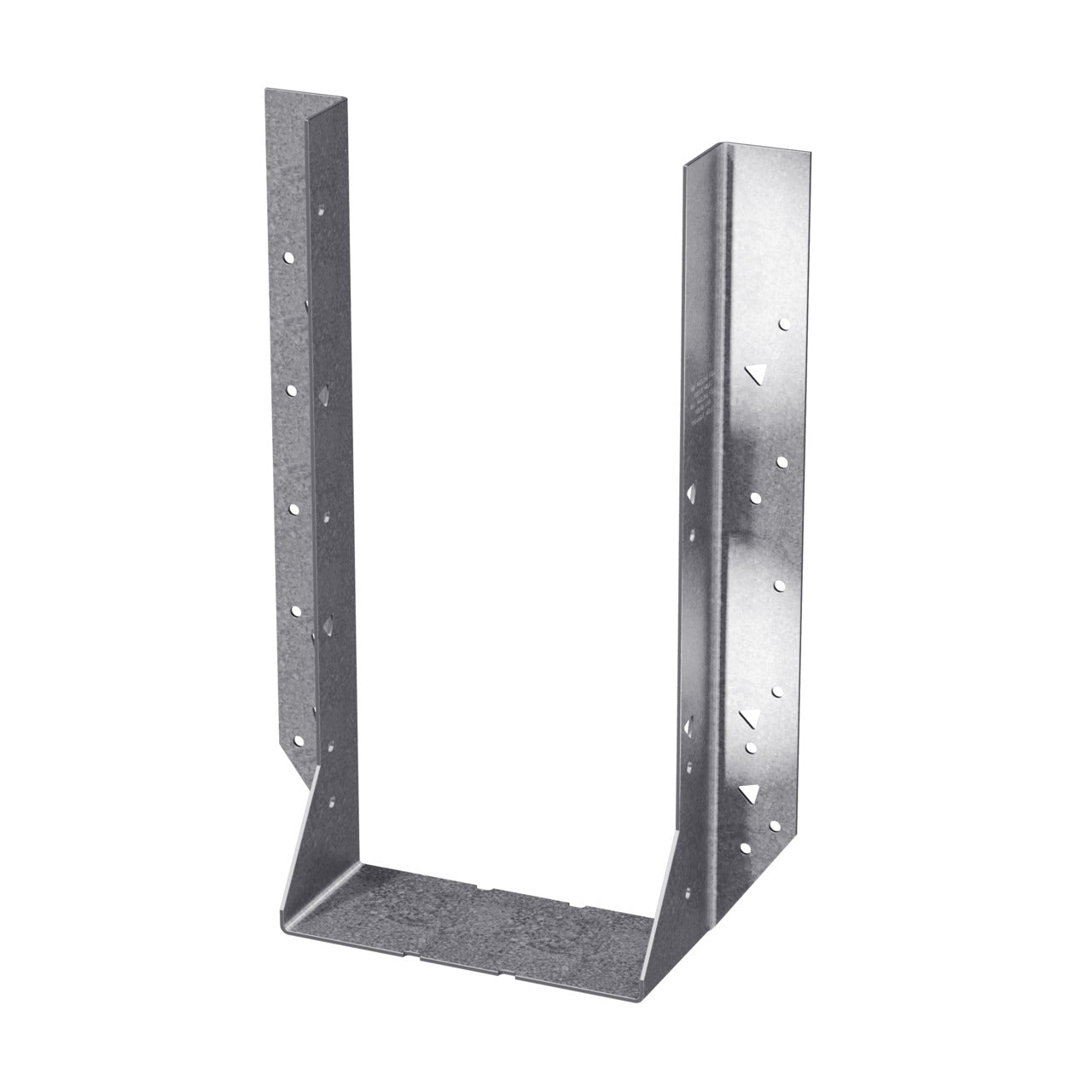

Simpson Strong-Tie HU614 Heavy Duty Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie HU614 is a heavy-duty face-mount joist hanger designed for strength and durability. This product is especially suitable for schools and commercial structures where safety and longevity are crucial. Its design features both triangle and round holes, allowing for the use of common nails to enhance load capabilities.

• Flexibility in joist to header installations.
• Suitable for various applications needing additional support.
• Constructed from steel and galvanized for added protection.

Product Highlights

The HU614 offers a versatile fastening solution with tested allowable loads, ensuring robust connections for demanding construction needs.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137HU614

Technical Specifications

• Load Capacity: Uplift (GFCMU - 160): 1795 lb, Down (GFCMU - 100/125): 4500 lb
• Gauge: 14
• Material: Steel
• Finish: Galvanized
• Fastener Size: (18) 1/4 x 2-3/4 in (GFCMU Titen 2), (18) 1/4 x 1-3/4 in (Concrete Titen 2), (8) 0.162 x 3-1/2 in (Joist)
• Application: Suitable for structures requiring additional strength
