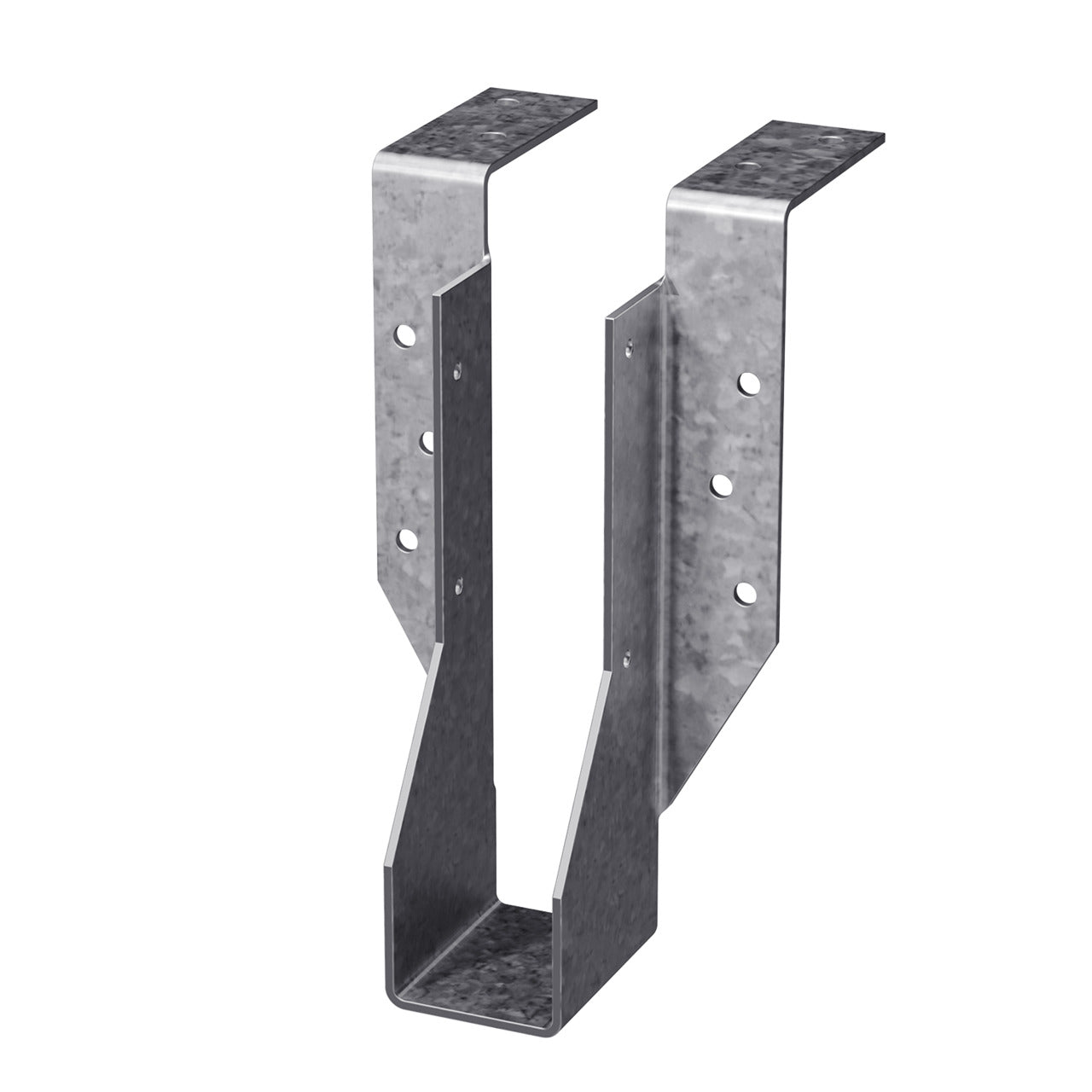

Simpson Strong-Tie HU28TF HUTF Series 2-1/4 x 1-9/16 x 7-1/8 12 ga Heavy Duty Top-Flange Joist Hanger

Product Description

The Simpson Strong-Tie HU28TF is a heavy-duty top-flange joist hanger designed to support joists in various construction settings. This joist hanger features a double-shear nailing design that enhances connection strength, making it suitable for demanding structural applications. It is engineered to minimize wood splitting, providing a reliable option for framing.

• Heavy-duty design for enhanced load-bearing capabilities
• Constructed from steel for durability
• Galvanized finish for corrosion resistance

Product Highlights

The HU28TF is ideal for applications that require strength and safety, such as schools and commercial buildings.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137HU28TF

Technical Specifications

• Load Capacity: Uplift 700 lb, Floor 2910 lb, Snow 2970 lb, Roof 3010 lb
• Gauge: 12
• Material: Steel
• Finish: Galvanized
• Application: Suitable for schools and structures that require additional strength
• Fastener Size: (10) 0.162 x 3-1/2 inches (Header), (4) 0.148 x 1-1/2 inches (Joist)
