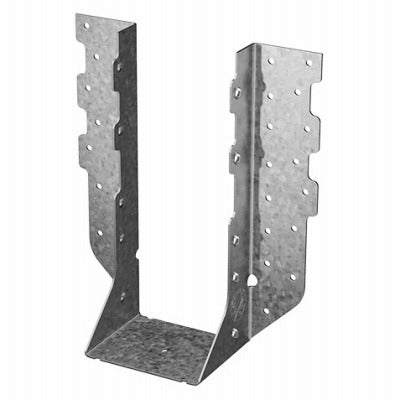

Simpson Strong Tie HHUS410 Beam Hanger 4x10

Product Description

The SIMPSON STRONG TIE HHUS410 is a double-shear beam hanger engineered for structural framing applications in both residential and commercial construction. Fabricated from 12-gauge galvanized steel, it provides strong corrosion resistance suited to interior and exposed framing environments. The double-shear nail pattern distributes load across two bearing points, increasing connection strength compared to single-shear designs. Licensed contractors and experienced framers install this hanger as part of a larger framing assembly, typically securing joists or beams to header or carrying members. Installation is completed with standard structural nails, keeping the fastening process straightforward on the job site.

The HHUS410 is sized for 4x10 lumber and is appropriate for wood-framed floor, roof, and deck systems where a reliable joist-to-beam or beam-to-beam connection is required. It is suited for both new construction framing and retrofit structural work. The galvanized finish extends service life in conditioned spaces as well as partially exposed framing conditions common in residential platform framing and light commercial structures.

Key Features

• 12-gauge galvanized steel construction for corrosion resistance and long-term durability
• Double-shear nail system distributes load across two points for increased connection strength
• Sized to accept 4x10 dimensional lumber
• Compatible with standard structural nails for straightforward installation
• Suitable for residential and light commercial framing applications

Compatibility

Designed as an OEM-style structural connector for use with 4x10 dimensional lumber in wood-framed residential and commercial construction assemblies.

Installation Notes

Installation should be performed by a qualified framing contractor or structural trades professional in accordance with applicable building codes and the manufacturer's installation guidelines. Power down or de-energize any adjacent electrical systems before working in close proximity to wiring. Do not bend, cut, or remove any factory tabs on the hanger, as doing so compromises the rated load capacity of the connection. Always use the nail size and pattern specified in the load tables for this connector.

Technical Specifications

• Material: 12-gauge galvanized steel
• Lumber Size: 4x10
• Connection Type: Double-shear nail pattern
• Weight: 36 pounds
• Unit of Measure: EA
• Package Quantity: 25

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: HHUS410
