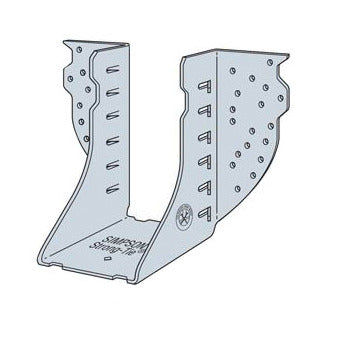

Simpson Strong-Tie HGUS72512 4 x 7-1/4 x 10-5/8 Double-Shear Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie HGUS72512 is a heavy double-shear face-mount joist hanger designed to provide strong support in various framing applications. This product features double shear nailing, distributing the load through two points on each joist nail enhancing strength. It is suitable for installations requiring fewer nails and offers quick setup using standard nails.

• Optimized for high load values
• Durable metal gear housing
• Two finger trigger for easy handling

Product Highlights

The HGUS72512 hanger is a reliable choice for builders seeking efficiency and durability in their projects.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Material: Steel

Technical Specifications

• Gauge: 12
• Finish: Galvanized
• Application: For applications where higher load values are needed
• Load Specifications: Uplift (160) 5040 lb, Floor (100) 9400 lb, Snow (115) 9400 lb
• Fastener Size: (56) 0.162 x 3-1/2 in (Face), (20) 0.162 x 3-1/2 in (Joist)
