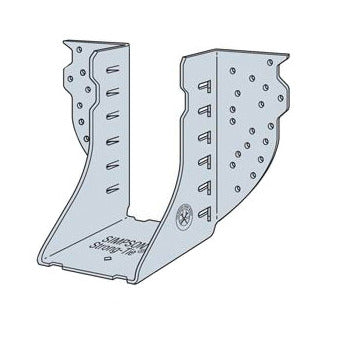

Simpson Strong-Tie HGUS72510 Heavy Double-Shear Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie HGUS72510 is a heavy double-shear face-mount joist hanger made from 12 gauge galvanized steel. This hanger features double shear nailing, distributing load effectively for enhanced strength and stability. The innovative design allows for fewer nails and quicker installation, making it suitable for various construction applications.

• Made from heavy duty 12 gauge galvanized steel
• Double shear nailing for effective load distribution
• Designed for fast installation with minimal hardware

Product Highlights

This joist hanger is ideal for applications requiring high load capacities while reducing the need for additional bracing.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: HGUS72510

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Gauge: 12
• Maximum Load Uplift: 4095 lb
• Maximum Load Floor/Snow/Roof: 9100 lb
• Fastener Size: (46) 0.162 x 3-1/2 in (Face), (16) 0.162 x 3-1/2 in (Joist)
• Application: For applications where higher load values are needed
