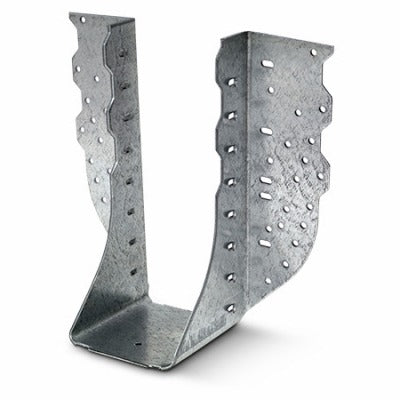

Simpson Strong Tie HGUS410 Face-mount Joist Hanger

Product Description

The SIMPSON STRONG TIE HGUS410 is a face-mount joist hanger engineered for structural framing connections in wood construction. It is built from 12-gauge steel and uses a double-shear nailing system that distributes load across two points, reducing the total number of fasteners required while maintaining structural integrity. This hanger is designed for use with 4x10 lumber and is installed with standard 16d common nails. Licensed contractors and framing carpenters install this hardware during rough framing on both residential and light commercial projects where code-compliant connections are required at beam-to-header or joist-to-beam junctions.

This hanger is suited for face-mount applications where a 4x10 joist or beam must be connected to a supporting header or ledger. It is commonly used in floor framing, deck framing, and roof framing assemblies. The double-shear nailing geometry is particularly useful in applications where load transfer efficiency is a priority and fastener count needs to be minimized without reducing allowable load capacity. Both residential and commercial framing applications are within scope.

Key Features

• Double-shear nailing system distributes load across two points for improved strength efficiency
• 12-gauge steel construction provides durability for structural applications
• Face-mount design simplifies installation at joist-to-header connections
• Compatible with standard 16d common nails for straightforward fastening
• Suited for both residential and commercial framing projects
• Sold in a package of 12 hangers per unit of measure

Compatibility

Designed as an OEM-style structural connector for use with 4x10 nominal lumber in standard wood-frame construction.

Installation Notes

Installation is performed by licensed contractors or qualified framing carpenters. Power down any adjacent electrical circuits before working in enclosed framing cavities. Fasten with the nail size and count specified on the product or in the current Simpson Strong-Tie load table for this hanger model to maintain rated load values. Follow applicable building codes, including IBC and IRC provisions for connector hardware, and obtain required inspections before enclosing framing.

Technical Specifications

• Material: 12-gauge steel
• Mount Type: Face-mount
• Lumber Size: 4x10
• Fastener Type: 16d common nails
• Package Quantity: 12 per package
• Weight: 25.2 pounds

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: HGUS410
