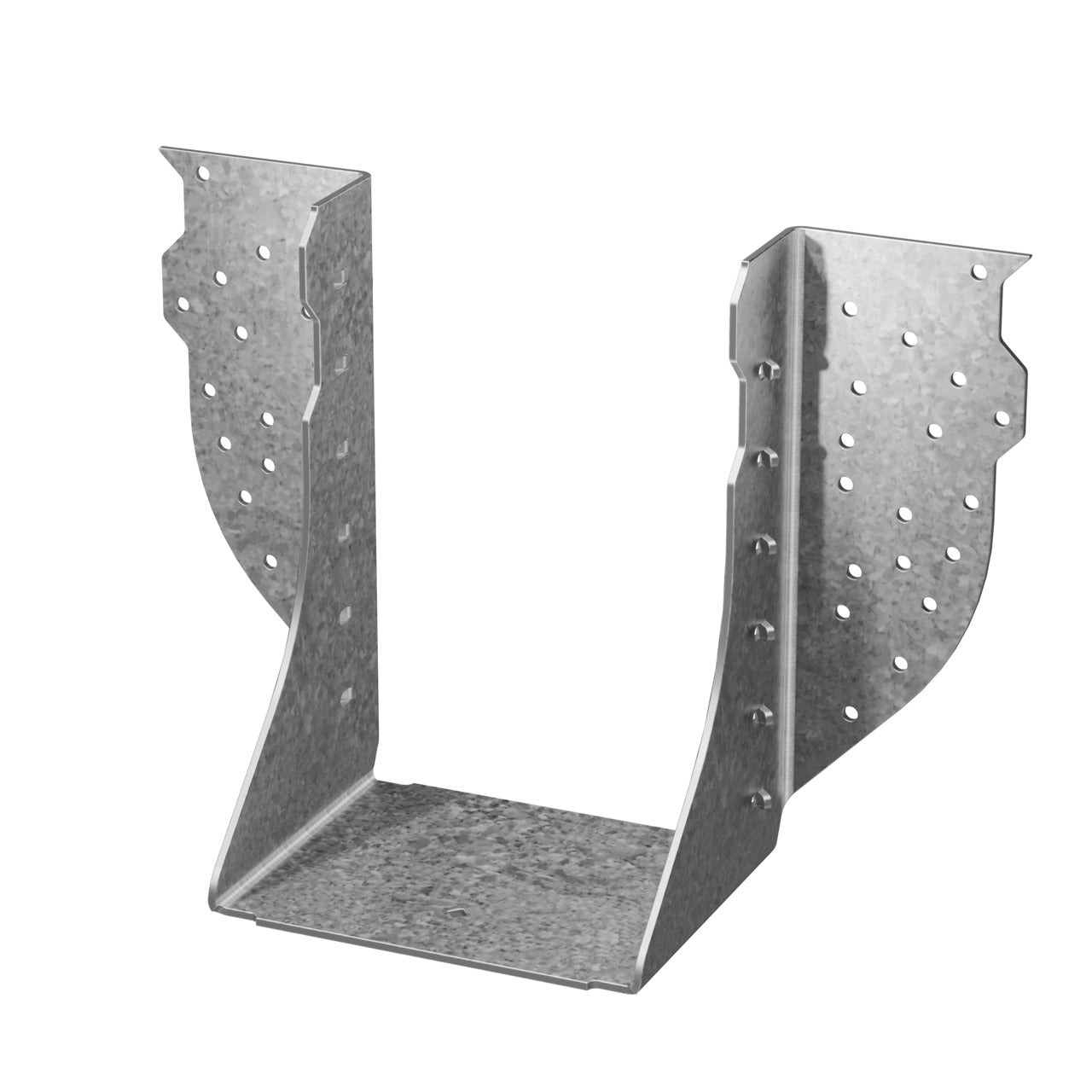

Simpson Strong-Tie HGUS283 Heavy Double Shear Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie HGUS283 is a heavy double shear face-mount joist hanger designed to support joists in various construction applications. This model has a typical size of three inches by four and fifteen-sixteenths inches by seven and one-fourth inches and is made from sturdy twelve-gauge steel. It features double shear nailing which enhances load distribution, allowing fewer nails for quicker installation. This provides a reliable option for medium load truss applications.

• Constructed from twelve-gauge galvanized steel
• Innovative double shear design for better strength
• Suitable for various load applications with high capacity

Product Highlights

The HGUS283 is built to handle high loads while allowing ease of installation. Its design is suitable for a range of construction needs.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137HGUS283

Technical Specifications

• Material: Steel
• Finish: Galvanized
• Load Capacity: 7460 lb for floor, snow, or roof
• Gauge: 12
• Fastener Size: (36) 0.162 x 3-1/2 in (Carrying Member), (12) 0.162 x 3-1/2 in (Carried Member)
• Application: For applications where higher load values are needed
