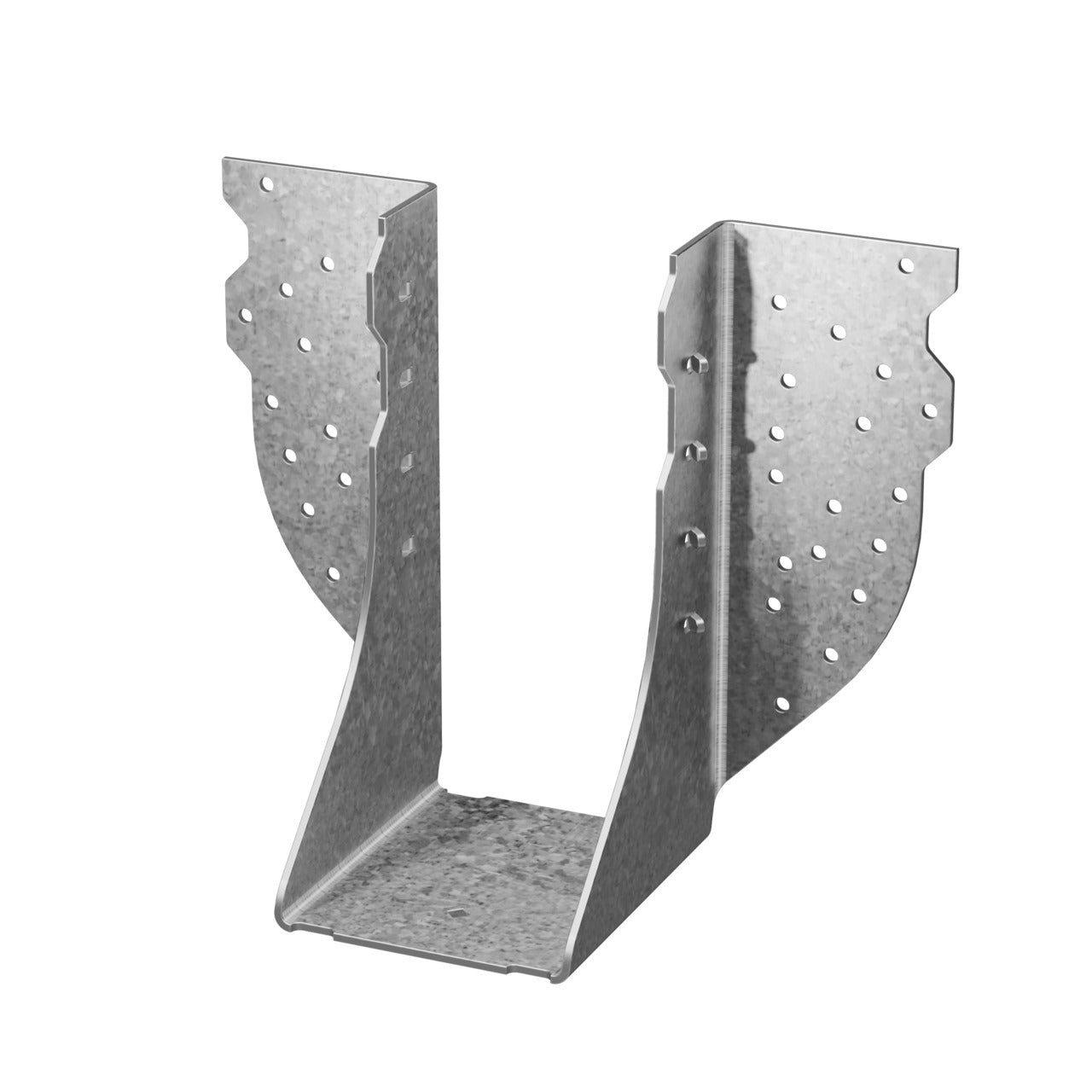

Simpson Strong-Tie HGUS282 Heavy Double Shear Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie HGUS282 is a heavy double shear face-mount joist hanger designed for high-load applications. It provides innovative double shear nailing that enhances strength by distributing loads through two points on each joist nail. This design results in fewer nails needed for installation, allowing for faster assembly using standard nails. Ideal for medium load truss operations, the HGUS282 replaces conventional hangers and offers significant load capacity in comparison.

• Heavy-duty design suitable for high-load applications
• Fewer nails needed for a quick and efficient installation
• Perfect for medium load truss applications

Product Highlights

It is built for ease of use and strength, making it a go-to choice for framing projects where reliability is critical.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137HGUS282

Technical Specifications

• Material: Steel
• Gauge: 12
• Finish: Galvanized
• Load Capacity: Uplift 160 (3235 lb), Floor 100 (7460 lb)
• Fastener Size: (36) 0.162 x 3-1/2 in (Carrying Member), (12) 0.162 x 3-1/2 in (Carried Member)
• Application: For applications where higher load values are needed
