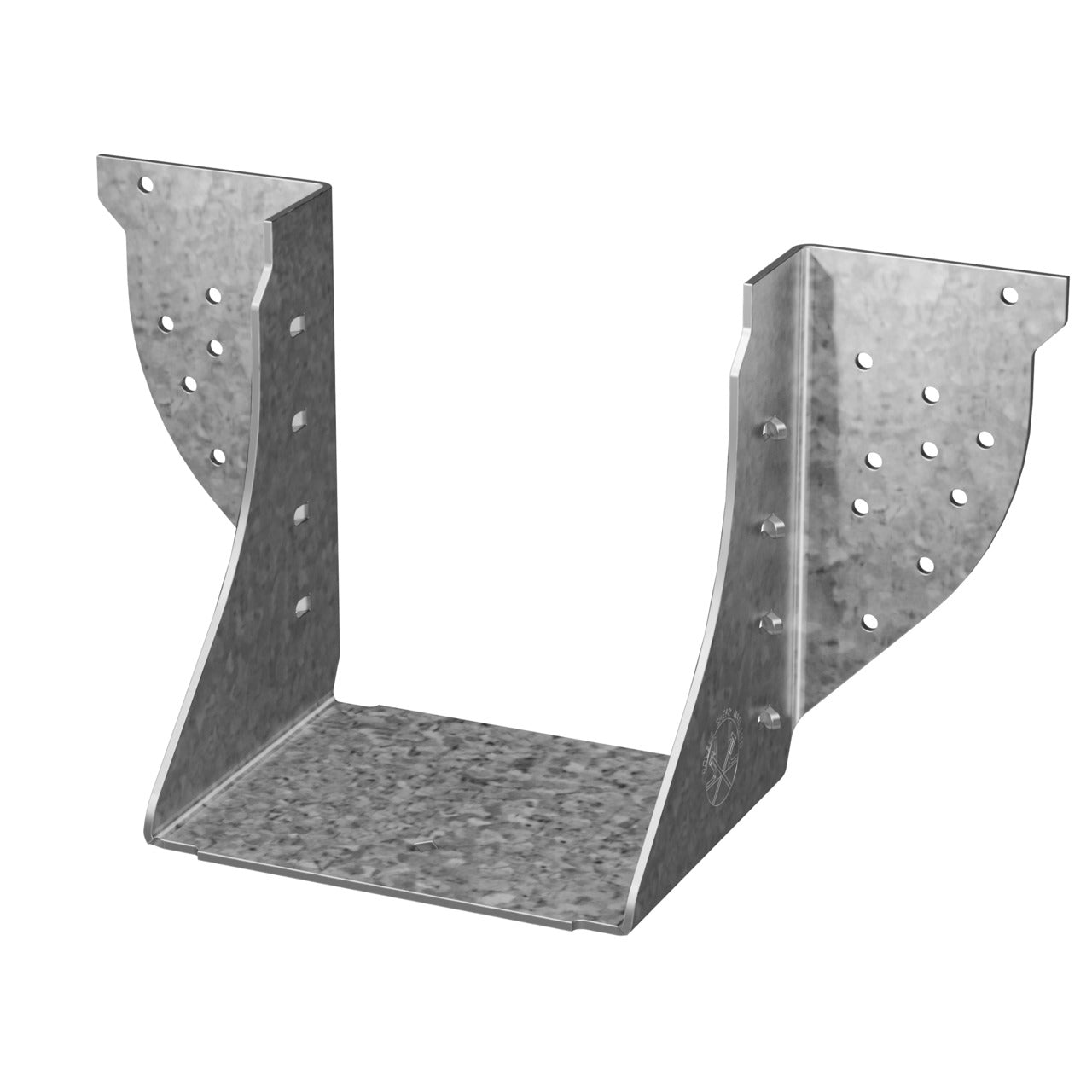

Simpson Strong-Tie HGUS263 Heavy Double Shear Face-Mount Joist Hanger

Product Description

The Simpson Strong-Tie HGUS263 is a heavy double shear face-mount joist hanger designed for robust structural support. This product features innovative double shear nailing. This allows for effective load distribution through two points on each joist nail. Thus, it enhances strength and requires fewer nails. It supports faster installation and can use all common nails for connections. Suitable for medium load truss applications, it also provides cost-effective solutions when compared to alternative products like HUS or THA hangers.

• Innovative double shear nailing for better load distribution
• Compatible with common nails for easy installation
• Provides strong support for medium load truss applications

Product Highlights

This hanger is ideal for construction projects where higher load values are required. It helps streamline the installation process, saving time and resources.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• UPC: 044315309106

Technical Specifications

• Load Ratings: Uplift (160) 2155 lb, Floor (100) 4340 lb, Roof (125) 5170 lb
• Gauge: 12
• Material: Steel
• Finish: Galvanized
• Fastener Size: (20) 0.162 x 3-1/2 in (Carrying Member), (8) 0.162 x 3-1/2 in (Carried Member)
• Application: For applications where higher load values are needed
