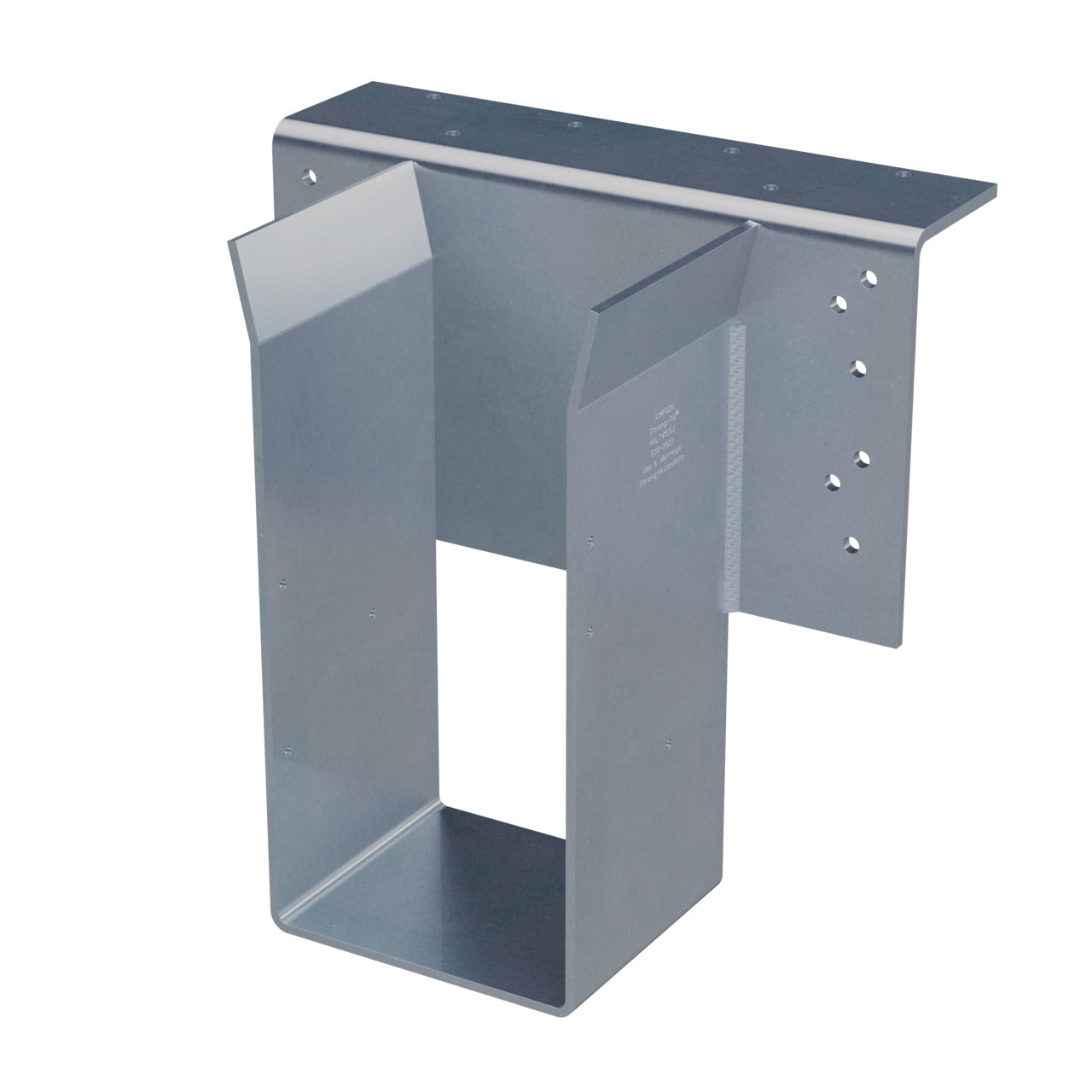

Simpson Strong-Tie HGLTV5516 Heavy Duty Top-Flange Hanger

Product Description

The Simpson Strong-Tie HGLTV5516 is a heavy-duty top-flange hanger designed for structural composite lumber header applications. This hanger provides strong support where high loads are present. It features top-flange nails that are strategically sized and located to minimize header degradation due to lamination splitting.

• Designed for heavy loads
• Web stiffeners are required for installation
• Variable-speed trigger for enhanced control

Product Highlights

Ideal for various framing applications, the HGLTV5516 offers reliable support in construction projects. It is suitable for use with LVL, PSL, LSL, DF/SP, and SPF/HF lumber.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137HGLTV5516

Technical Specifications

• Gauge: 7
• Finish: Painted
• Maximum Load: Uplift (160) 1295 lb, LVL 10500 lb, PSL 9485 lb, LSL 9000 lb, DF/SP 8835 lb, SPF/HF 6770 lb
• Fastener Size: (6) 0.162 x 3-1/2 in Top/(12) 0.162 x 3-1/2 in Face (Solid Header), (6) 0.162 x 3-1/2 in (Joist)
• Nominal Product Depth: 0
