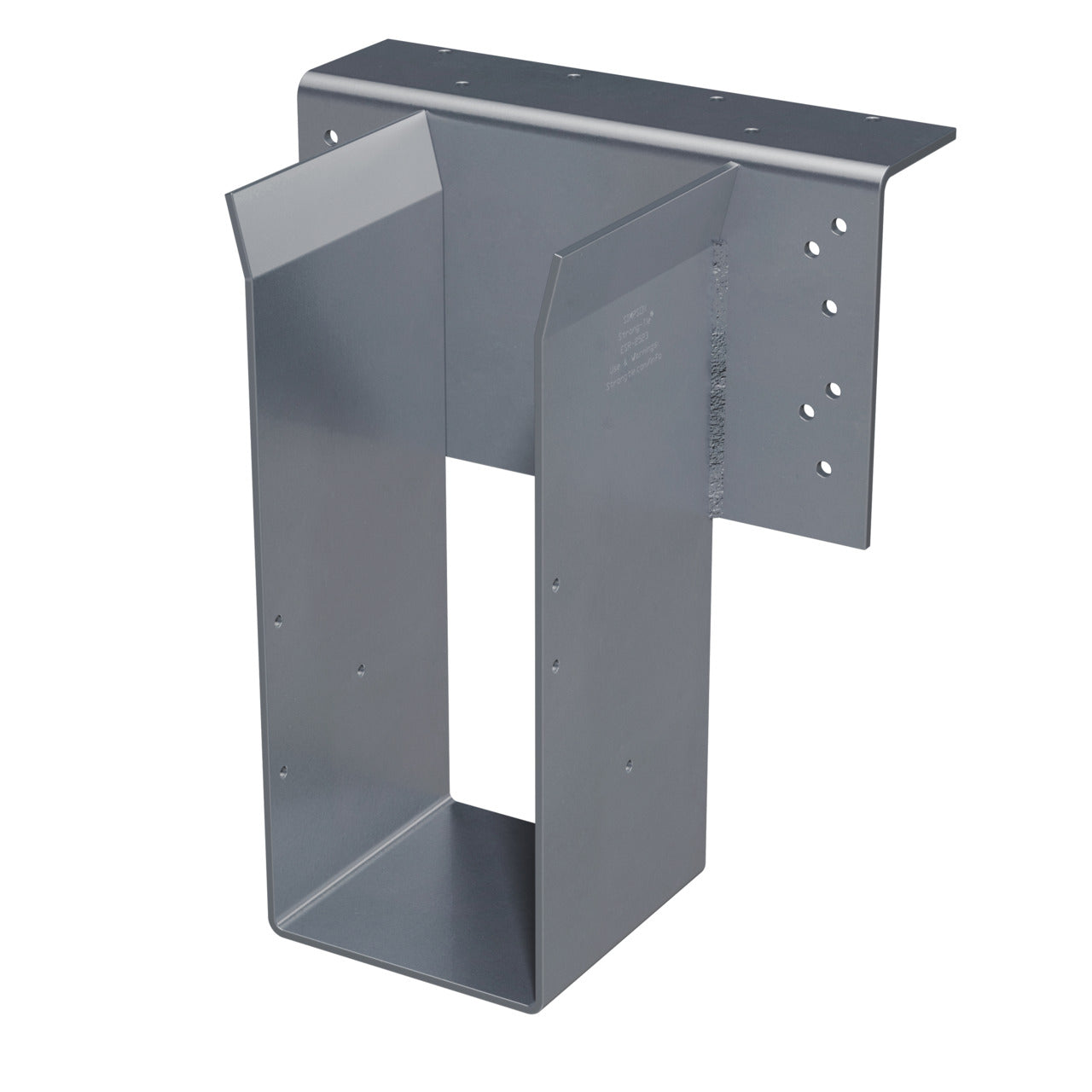

Simpson Strong-Tie HGLTV5514 HGLTV Series 6 x 5-9/16 x 14 7 ga Heavy Duty Top-Flange Hanger

Product Description

The Simpson Strong-Tie HGLTV5514 is a heavy-duty top-flange hanger designed for structural composite lumber header applications. This product is built to support high loads, making it ideal for various construction tasks.

• Suitable for structural composite lumber header applications.
• Designed with nails positioned to avoid header splitting.
• Hanger includes required web stiffeners for enhanced strength.

Product Highlights

This hanger is suitable for different working conditions and includes features to ensure secure assembly, like a cloth cord for locking plugs.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part #: 137HGLTV5514

Technical Specifications

• Gauge: 7
• Finish: Painted
• Maximum Load: Uplift (160) 1295 lb, LVL 10500 lb, PSL 9485 lb, LSL 9000 lb, DF/SP 8835 lb, SPF/HF 6770 lb
• Fastener Size: (6) 0.162 x 3-1/2 in Top/(12) 0.162 x 3-1/2 in Face (Solid Header), (6) 0.162 x 3-1/2 in (Joist)
• Nominal Product Depth: 0
