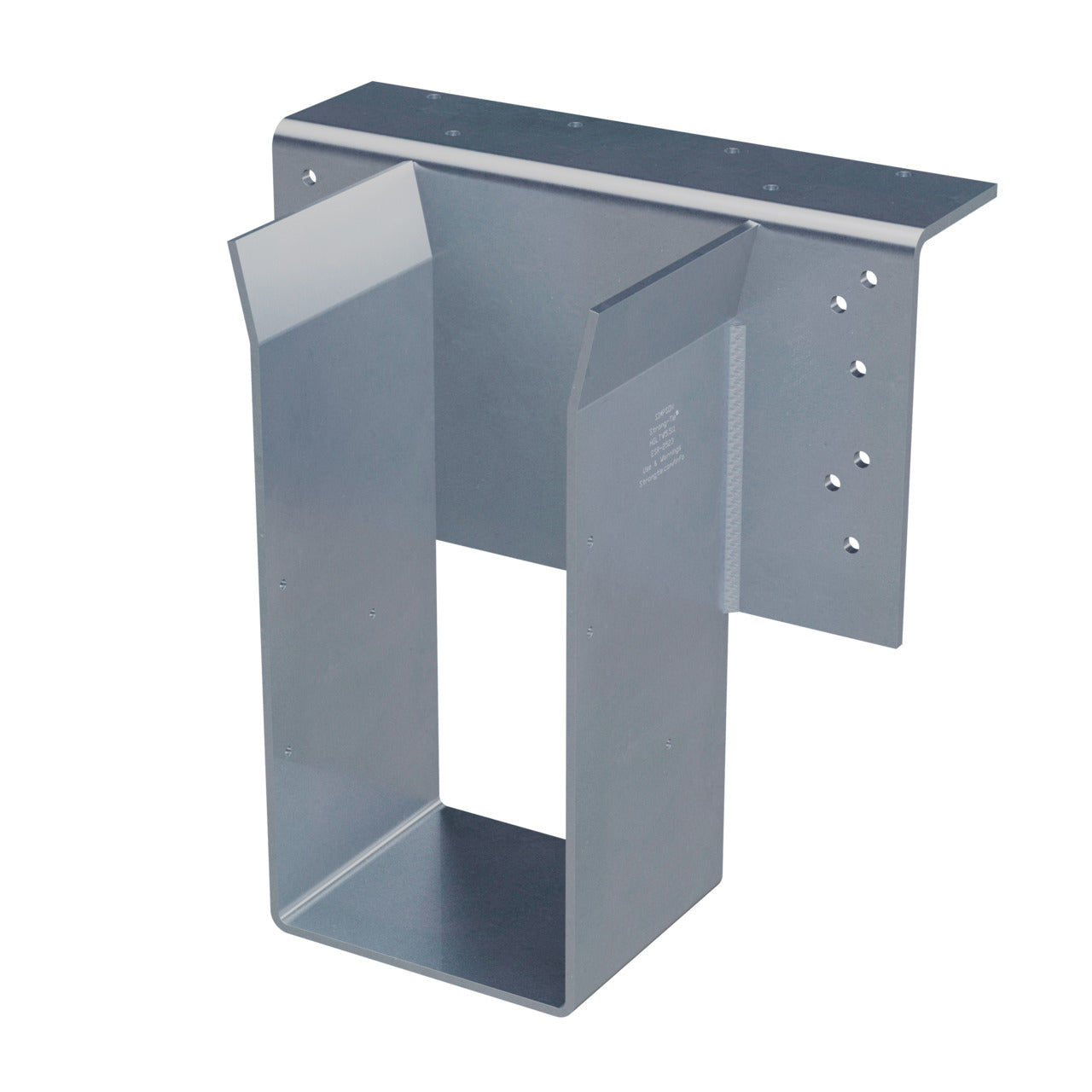

Simpson Strong-Tie HGLTV5511 HGLTV Series 6 x 5-9/16 x 11-7/8 7 ga Heavy Duty Top-Flange Hanger

Product Description

The Simpson Strong-Tie HGLTV5511 is a heavy-duty top-flange hanger designed for applications requiring high load support. This product suits structural composite lumber header applications effectively. It features specifically sized and positioned nails to minimize header degradation from splitting.

• Web stiffeners enhance structural integrity.
• E-Z Empty dirt cup allows for quick debris capture and disposal.
• Designed for multiple carpet heights with a 6-position adjustment system.

Product Highlights

This heavy-duty hanger supports heavy loads and is ideal for many flooring applications, ensuring durability and reliability in construction.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137HGLTV5511

Technical Specifications

• Gauge: 7
• Finish: Painted
• Maximum Load: Uplift (160) 1295 lb, LVL 10500 lb, PSL 9485 lb, LSL 9000 lb, DF/SP 8835 lb, SPF/HF 6770 lb
• Fastener Size: (6) 0.162 x 3-1/2 in Top/(12) 0.162 x 3-1/2 in Face, (6) 0.162 x 3-1/2 in (Joist)
• Nominal Product Depth: 0
