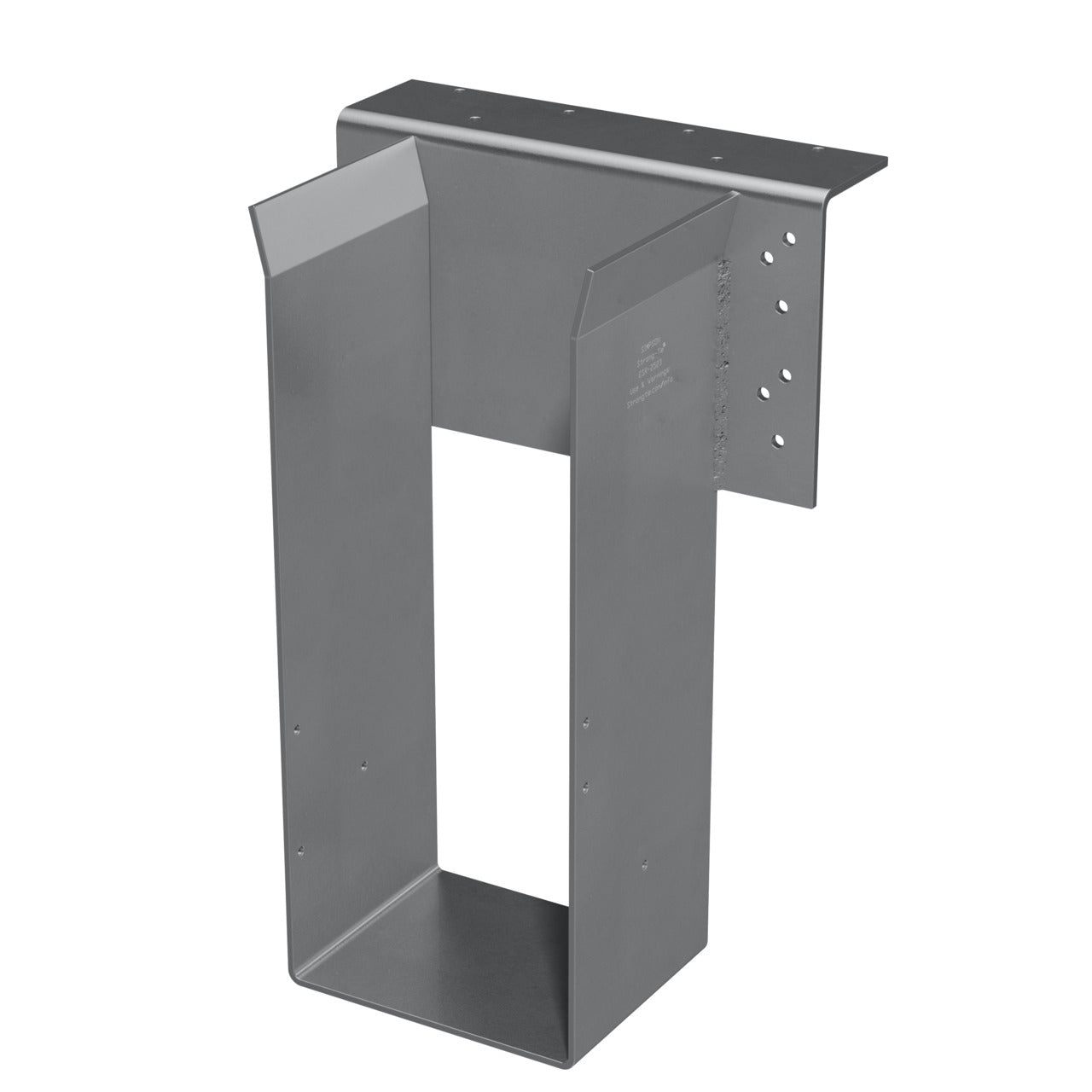

Simpson Strong-Tie HGLTV4142 HGLTV Series 6 x 7-1/8 x 14 7 ga Heavy Duty Top-Flange Hanger

Product Description

The Simpson Strong-Tie HGLTV4142 is a heavy-duty top-flange hanger designed for structural composite lumber header applications that require high load support. This hanger features sizing and positioning of top-flange nails to minimize the risk of header degradation caused by splitting of laminations.

• Web stiffeners enhance structural integrity.
• Compatible with various wood types for versatile applications.
• Designed to support significant uplift loads.

Product Highlights

This top-flange hanger is engineered for reliable load-bearing capacity in framing applications.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: HGLTV4142

Technical Specifications

• Gauge: 7
• Finish: Painted
• Maximum Load: Uplift (160) 1295 lb, LVL 10500 lb, PSL 9485 lb, LSL 9000 lb, DF/SP 8835 lb, SPF/HF 6770 lb
• Fastener Size: (6) 0.162 x 3-1/2 in Top/(12) 0.162 x 3-1/2 in Face (Solid Header), (6) 0.162 x 3-1/2 in (Joist)
• Nominal Product Depth: 0
