Simpson Strong-Tie HGLTV411882 Heavy Duty Top-Flange Hanger 7 ga HGLTV411882

Product Description

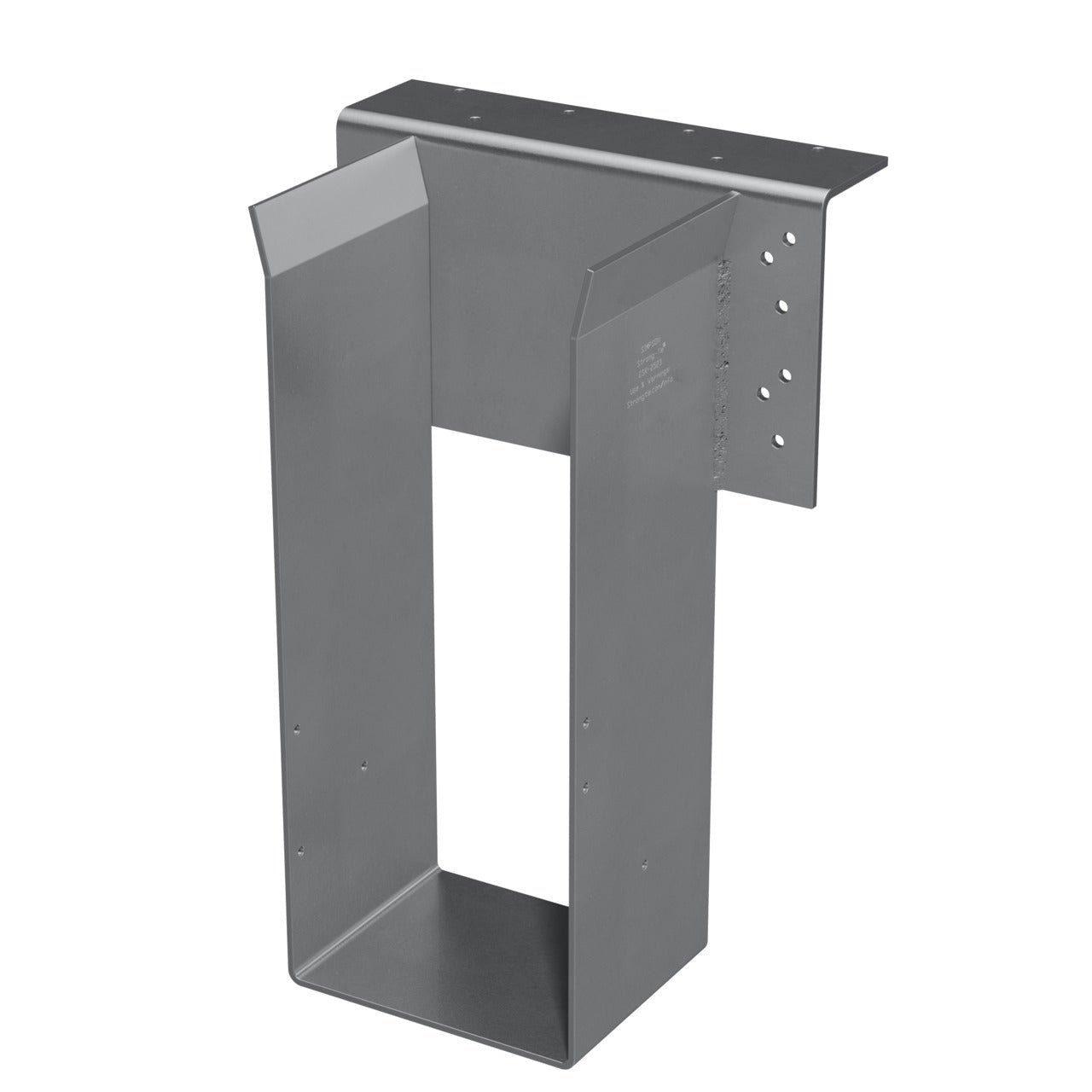

The Simpson Strong-Tie HGLTV411882 is a heavy-duty top-flange hanger designed for use in structural composite lumber header applications that require high loads. This product is engineered with precision to ensure reliable performance in framing tasks.

• Manufactured with seven-gauge steel for strength
• Features specifically sized nails to prevent header degradation
• Includes necessary web stiffeners for added stability

Product Highlights

The HGLTV hanger allows for high load capacities and durability in demanding applications.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: HGLTV411882

Technical Specifications

• Gauge: 7
• Maximum Load: Uplift (160) 1295 lb, LVL 10500 lb, PSL 9485 lb, LSL 9000 lb, DF/SP 8835 lb, SPF/HF 6770 lb
• Fastener Size: (6) 0.162 x 3-1/2 in Top/(12) 0.162 x 3-1/2 in Face (Solid Header), (6) 0.162 x 3-1/2 in (Joist)
• Finish: Painted
• Nominal Product Depth: 0
