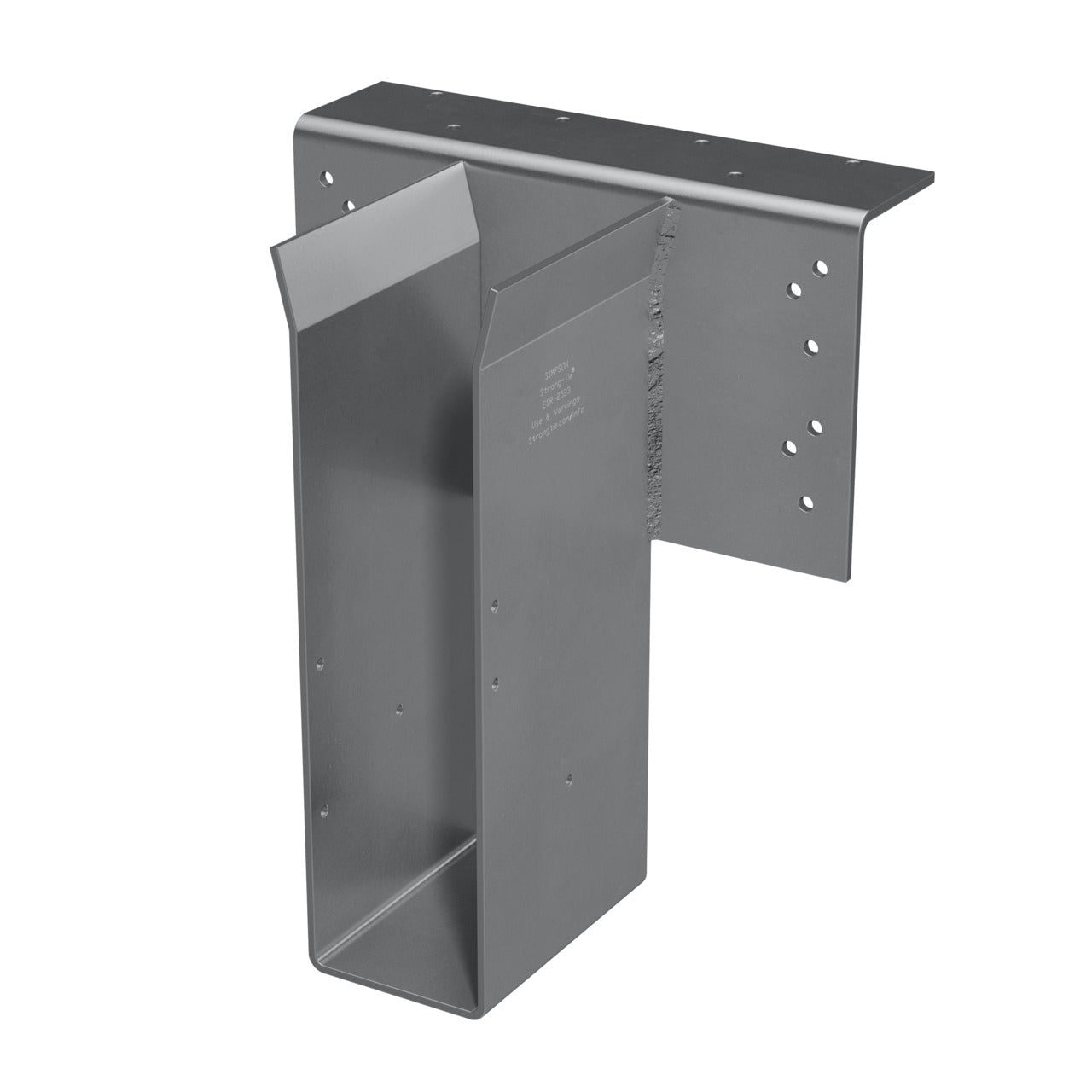

Simpson Strong-Tie HGLTV3511 Heavy Duty Top-Flange Hanger

Product Description

The Simpson Strong-Tie HGLTV3511 is a heavy-duty top-flange hanger designed for structural composite lumber header applications. This hanger accommodates high-load requirements. The top-flange nails are strategically sized and positioned to minimize degradation of the header caused by splitting of laminations. Installation requires web stiffeners for optimal performance.

• Designed for high-load structural composite lumber headers
• Top-flange nails prevent header degradation
• Web stiffeners required for effective support

Product Highlights

This hanger supports significant loads, enhancing safety and stability in framing applications.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: HGLTV3511

Technical Specifications

• Gauge: 7
• Finish: Painted
• Maximum Load: Uplift (160) 1295 lb, LVL 10500 lb, PSL 9485 lb, LSL 9000 lb, DF/SP 8835 lb, SPF/HF 6770 lb
• Fastener Size: (6) 0.162 x 3-1/2 in Top/(12) 0.162 x 3-1/2 in Face (Solid Header), (6) 0.162 x 3-1/2 in (Joist)
