Simpson Strong Tie H2.5AZ Hurricane Tie Zmax 100 Pack

Product Description

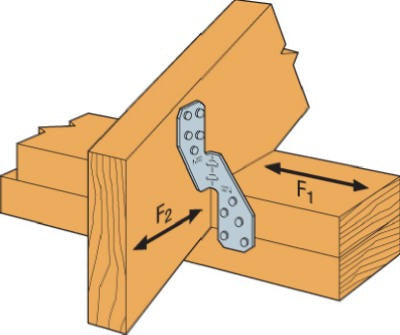

The SIMPSON STRONG TIE H2.5AZ is a Z-Max galvanized hurricane tie designed to anchor 2x rafters to top plates, resisting wind uplift forces that can compromise a roof framing assembly. Fabricated from Z-Max galvanized steel, the H2.5AZ delivers elevated corrosion resistance compared to standard G90 galvanized connectors, making it suitable for exterior and treated-lumber environments. Each tie is installed using 8d nails, and the manufacturer recommends installing ties in pairs for full uplift capacity. This connector is used by framing carpenters, structural contractors, and licensed general contractors on both residential and light commercial projects.

The H2.5AZ is applied at rafter-to-top-plate connections in roof framing assemblies where code-required uplift resistance must be documented. Typical applications include new construction, re-roofing projects with exposed framing, room additions, and post-storm structural repairs. The Z-Max coating makes it a practical choice in coastal, high-humidity, or pressure-treated-lumber environments where standard galvanized hardware corrodes prematurely. This package contains 100 individual ties, making it appropriate for full-framing projects rather than single-repair quantities.

Key Features

• Z-Max galvanized steel construction provides enhanced corrosion resistance over standard G90 coatings
• Designed for 2x rafter-to-top-plate connections with resistance to wind uplift forces
• Install in pairs with 8d nails for full rated uplift capacity
• Suitable for use with pressure-treated lumber and in high-moisture environments
• Package of 100 ties supports full-framing production workflows

Compatibility

Designed as an OEM-specification hurricane tie for 2x dimensional lumber rafter-to-top-plate connections in wood-framed roof assemblies.

Installation Notes

Installation is typically performed by framing carpenters or licensed contractors in compliance with local building codes and IRC or IBC uplift requirements. Fasten with 8d nails through all available nail holes; install ties in pairs on opposing faces of the rafter for full design load. Do not substitute smaller-diameter or shorter nails, as this will reduce the rated uplift capacity. Verify compatibility with any preservative-treated lumber specifications before installation.

Technical Specifications

• Material: Z-Max Galvanized Steel
• Application: 2x Rafter to Top Plate
• Fastener Requirement: 8d nails, installed in pairs
• Package Quantity: 100 each
• Package Weight: 11 pounds
• Unit of Measure: EA

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: H2.5AZ
