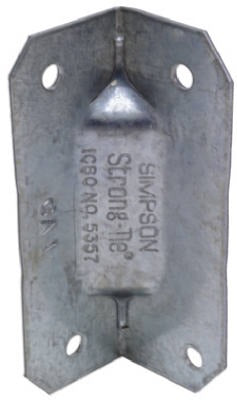

Simpson Strong Tie GA1 Gusset Angle 18-gauge Galvanized

Product Description

The SIMPSON STRONG TIE GA1 is an 18-gauge galvanized steel gusset angle designed to reinforce angle connections in light framing and structural construction. Measuring 2-3/4 inches by 1 inch, this connector is used to tie intersecting framing members and strengthen corner or angular joints. An embossed bend section increases rigidity at the fold point, improving load transfer across the connection. Installation is straightforward, using four 10D nails to seat the angle securely against wood members. Licensed contractors and experienced framers install this hardware as part of standard wood-frame construction assemblies.

The GA1 gusset angle suits residential and light commercial framing applications where reinforcing angle connections is required. Common uses include wall framing tie points, roof framing intersections, and general structural connector applications where a compact, pre-formed steel angle is needed. The galvanized finish provides corrosion resistance suited to interior framing as well as covered exterior assemblies. This connector is sold in packages of 100 units, making it practical for production framing and repetitive installation scenarios.

Key Features

• 18-gauge galvanized steel construction for corrosion resistance and structural durability
• Embossed bend section increases strength at the fold and improves load transfer
• Compact 2-3/4 inch by 1 inch profile fits tight framing connection points
• Installs with four 10D nails for a secure, consistent attachment
• Sold in 100-count packages for production framing efficiency

Compatibility

Designed as an OEM-style connector for use in standard wood-frame construction assemblies requiring reinforced angle connections.

Installation Notes

Installation is typically performed by licensed framers or general contractors as part of wood-frame structural assemblies. Power down any adjacent electrical circuits and ensure the framing area is clear before fastening. Drive all specified nails fully into both mating framing members to achieve the rated connection. Follow applicable building codes and local jurisdiction requirements for structural connector placement and fastener schedules.

Technical Specifications

• Material: 18-gauge galvanized steel
• Dimensions: 2-3/4 inches x 1 inch
• Fastener Requirement: Four 10D nails
• Package Quantity: 100 per package
• Weight: 7 pounds
• Unit of Measure: EA

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: GA1
