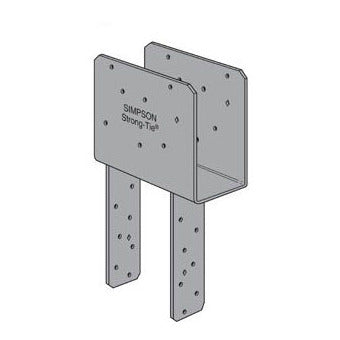

Simpson Strong-Tie ECCQ86SDS25 End Column Cap 3 Gauge

Product Description

The Simpson Strong-Tie ECCQ86SDS25 End Column Cap is a sturdy component designed for securing column and beam configurations. This cap uses Strong-Drive SDS heavy-duty connector screws that offer quick installation and enhance the overall column stability compared to traditional bolts.

• Utilizes SDS screws for improved installation speed
• Features painted finish for enhanced durability
• Designed for a nominal beam width of seven and a half inches

Product Highlights

This product is critical in framing applications where a firm connection is necessary for structural integrity.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137ECCQ86

Technical Specifications

• Uplift Load: 5355 lb
• Down Load: 25780 lb
• Gauge: 3
• Finish: Painted
• Cap Type: End
• Beam Width: 7-1/2 inches
• Leg Spacing: 5-1/2 inches
• Fastener Size: (14) 1/4 x 2-1/2 inch SDS Screws (Beam), (14) 1/4 x 2-1/2 inch SDS Screws (Post)
