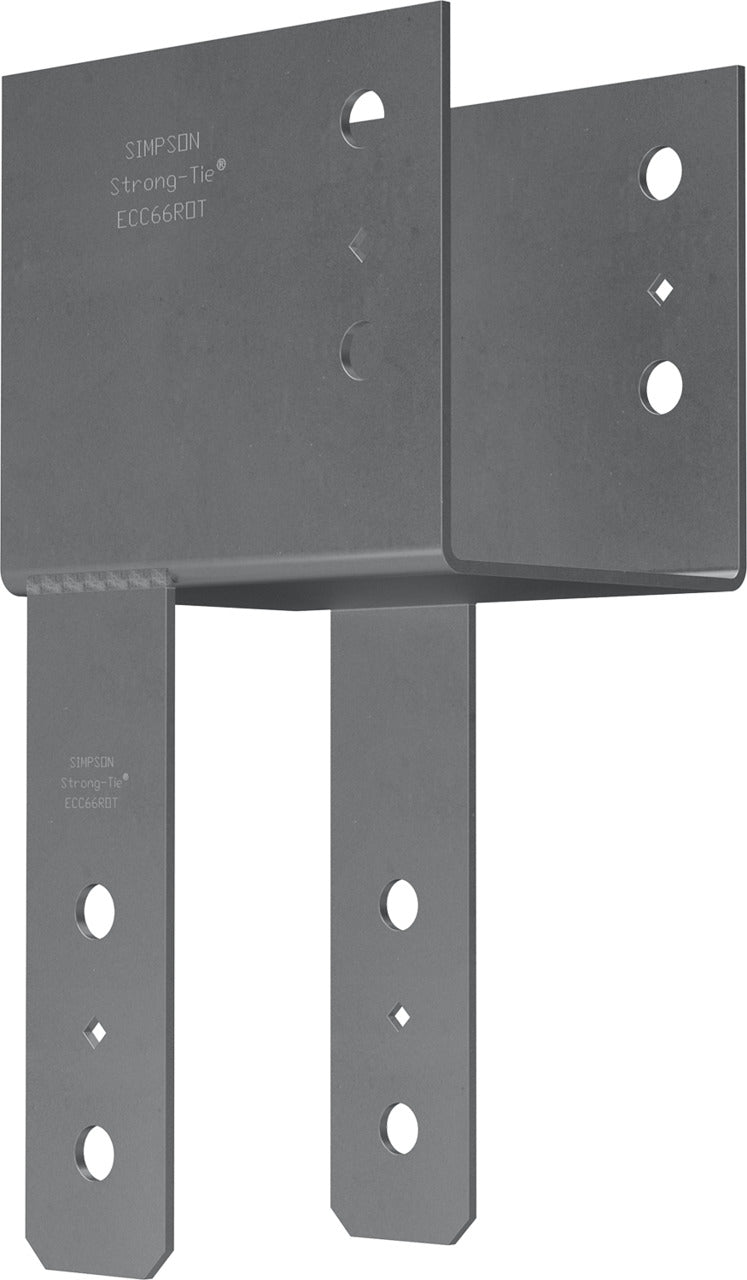

Simpson Strong-Tie ECC66ROT End Column Cap

Product Description

The Simpson Strong-Tie ECC66ROT is an end column cap designed for strength and stability in framing applications. This product ensures a robust connection for column and beam pairings, specifically made from painted steel. It is suitable for various construction projects that require reliable support structures. Here are some key features:

• Constructed from painted gray steel for corrosion resistance
• Designed with a narrow notch for enhanced connection strength
• Accommodates beams with widths of five and one-half inches

Product Highlights

This column cap offers reliable performance in framing applications, providing secure connections between columns and beams.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: ECC66ROT

Technical Specifications

• Load Rating: Down (100) 18905 lb
• Gauge: 7
• Cap Type: End
• Finish: Painted
• Beam Width: 5-1/4 inches, 5-1/2 inches
• Leg Spacing: 5-1/2 inches
• Fastener Size: (2) 5/8 inch stainless steel bolts (Beam), (2) 5/8 inch stainless steel bolts (Post)
