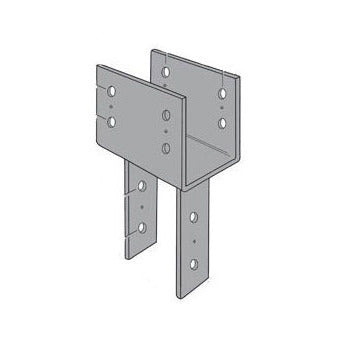

Simpson Strong-Tie ECC5146ROT ECC Series 9-1/2 x 5-1/4 x 8 3 ga Gray Painted Steel End Column Cap

Product Description

The Simpson Strong-Tie ECC5146ROT is a gray painted steel end column cap designed to provide a strong and stable connection for column beam combinations. This component is essential in construction, ensuring structural integrity and safety.

• Designed for end column applications
• Compatible with beams having a width of five and one-eighth inches
• Fabricated from durable three-gauge steel

Product Highlights

This end column cap enhances the support for beams and columns, making it suitable for both residential and commercial projects.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: ECC5146ROT

Technical Specifications

• Load Capacity: Down (100) 17615 lb
• Color: Gray
• Gauge: 3
• Finish: Painted
• Cap Type: End
• Material: Steel
• Beam Width: 5-1/8 inches
• Leg Spacing: 5-1/2 inches
• Fastener Size: (2) 3/4 inch bolts (Beam), (2) 3/4 inch bolts (Post)
