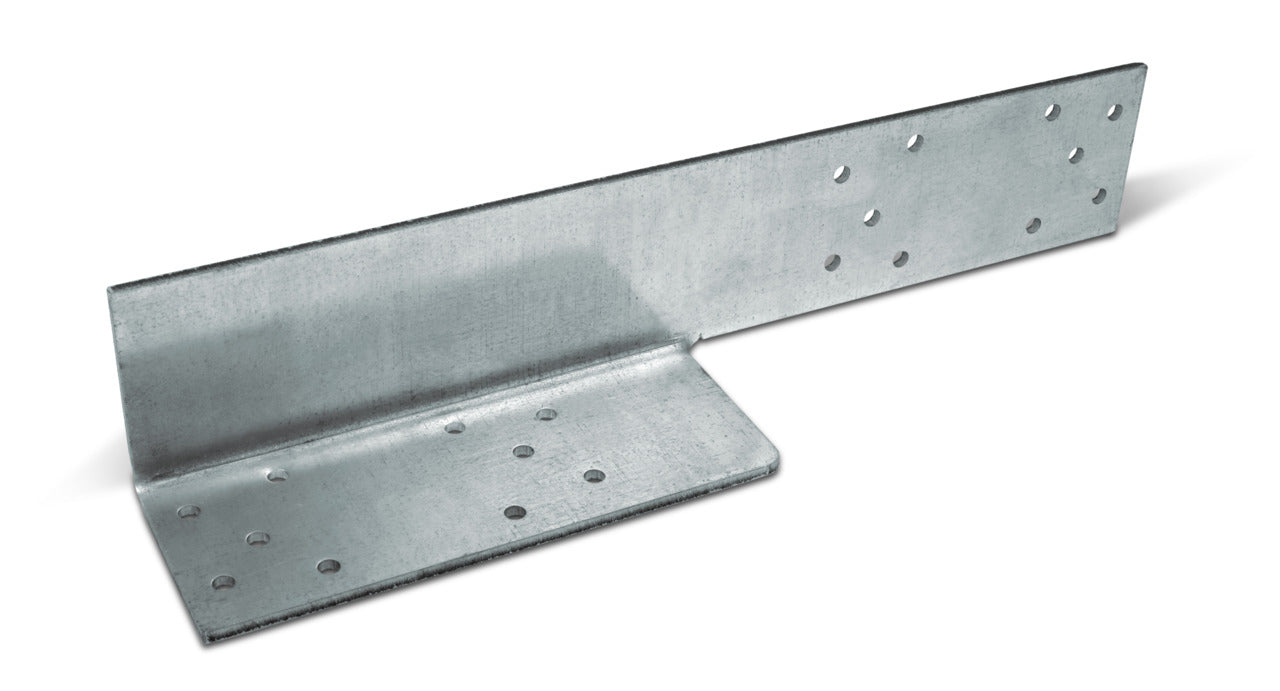

Simpson Strong-Tie DSC5LSDS3 Left Drag-Strut Connector

Product Description

The Simpson Strong-Tie DSC5LSDS3 Left Drag-Strut Connector is engineered for effective transfer of diaphragm shear forces from girder trusses or beams to shearwalls. This design achieves optimized fastener locations, enhancing structural performance while requiring fewer fasteners compared to previous models. The DSC5 connector is compatible with 1/4 x 3 inch Strong-Drive SDS heavy-duty connector screws, which are included with the product.

• Transfers diaphragm shear forces to shearwalls.
• Requires 40% fewer fasteners than the DSC4 model.
• Supports higher load capacities for enhanced safety.

Product Highlights

The DSC5 optimizes installation efficiency and improves overall load handling capabilities.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: DSC5LSDS3

Technical Specifications

• Finish: Painted
• Maximum Load (DF/SP): Compression 4340 lb, Tension 4195 lb
• Maximum Load (SPF/HF): Compression 3730 lb, Tension 3610 lb
• Fastener Size: 1/4 x 3 inch
• Nominal Product Depth: 0 inches
