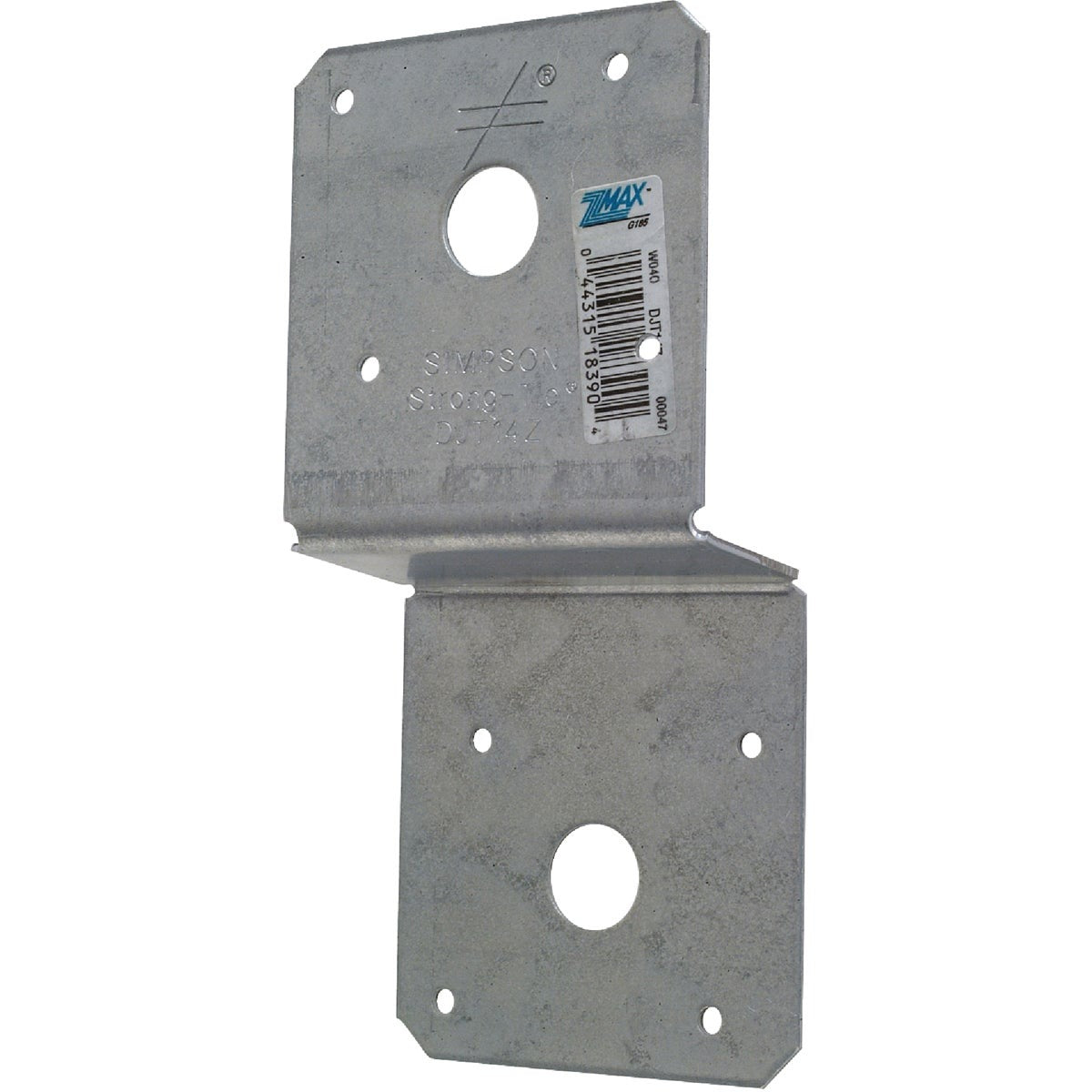

Simpson Strong-tie DJT14Z Deck Joist Tie Z-max Galvanized

Product Description

The SIMPSON STRONG-TIE DJT14Z is a Z-Max coated galvanized steel joist tie designed to connect 2x deck joists to the side of 4x or smaller support posts. Formed from 14-gauge steel with a Z-Max galvanized coating, it provides corrosion resistance suitable for exterior deck framing applications. The connector fastens using 8-16d nails or two 5/8-inch bolts, giving installers flexibility depending on site conditions and load requirements. Carpenters, deck builders, and general contractors typically install this hardware as part of deck framing systems where lateral joist-to-post connections are required.

The DJT14Z is used in residential and light commercial deck construction where 2x joists bear against or tie into 4x or lesser vertical support posts. The manufacturer recommends installing the connector on the post first before positioning the joist. This sequencing improves alignment and fastener access during framing. The connector suits treated-lumber deck framing where corrosion resistance is a primary concern for long-term structural integrity.

Key Features

• Z-Max galvanized coating for corrosion resistance in exterior and treated-lumber environments
• 14-gauge steel construction for structural rigidity
• Accepts 8-16d nails or two 5/8-inch bolts for fastener flexibility
• Connects 2x deck joists to 4x or lesser support posts
• Manufacturer recommends post-first installation for improved alignment

Compatibility

Designed to connect 2x deck joists to the side of 4x or lesser support posts in exterior deck framing applications.

Installation Notes

Install on the post first before positioning and securing the joist, as recommended by the manufacturer. Fasten with 8-16d nails or two 5/8-inch bolts — do not mix fastener types within a single connection. Follow local building codes and applicable load table requirements when specifying connector placement and fastener schedules. Always use fasteners rated for exterior or treated-lumber applications to maintain corrosion resistance at the connection point.
