Simpson Strong-Tie CCQ98SDS25 Column Cap 11 x 8-7/8 x 7

Product Description

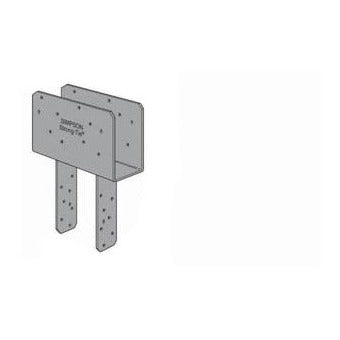

The Simpson Strong-Tie Column Cap, MPN CCQ98SDS25, is designed to create strong connections for column and beam structures. This cap uses Strong-Drive SDS heavy-duty connector screws, allowing for quick installation and enhancing the net area of the column compared to traditional bolting methods. The SDS screws are lower profile than standard through bolts, contributing to a streamlined design.

• Constructed from gray painted steel for durability
• Compatible with various beam widths up to eight and three-fourths inches
• Includes necessary fasteners for installation

Product Highlights

This column cap is ideal for framing applications requiring a solid connection between columns and beams.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137CCQ98

Technical Specifications

• Load Capacity: Uplift 6,785 lb, Down 62,565 lb
• Gauge: 3
• Finish: Painted
• Beam Width: 8-3/4 inches
• Leg Spacing: 7-1/2 inches
• Fastener Size: (16) 1/4 x 2-1/2 inch SDS Screws for beam, (14) 1/4 x 2-1/2 inch SDS Screws for post
