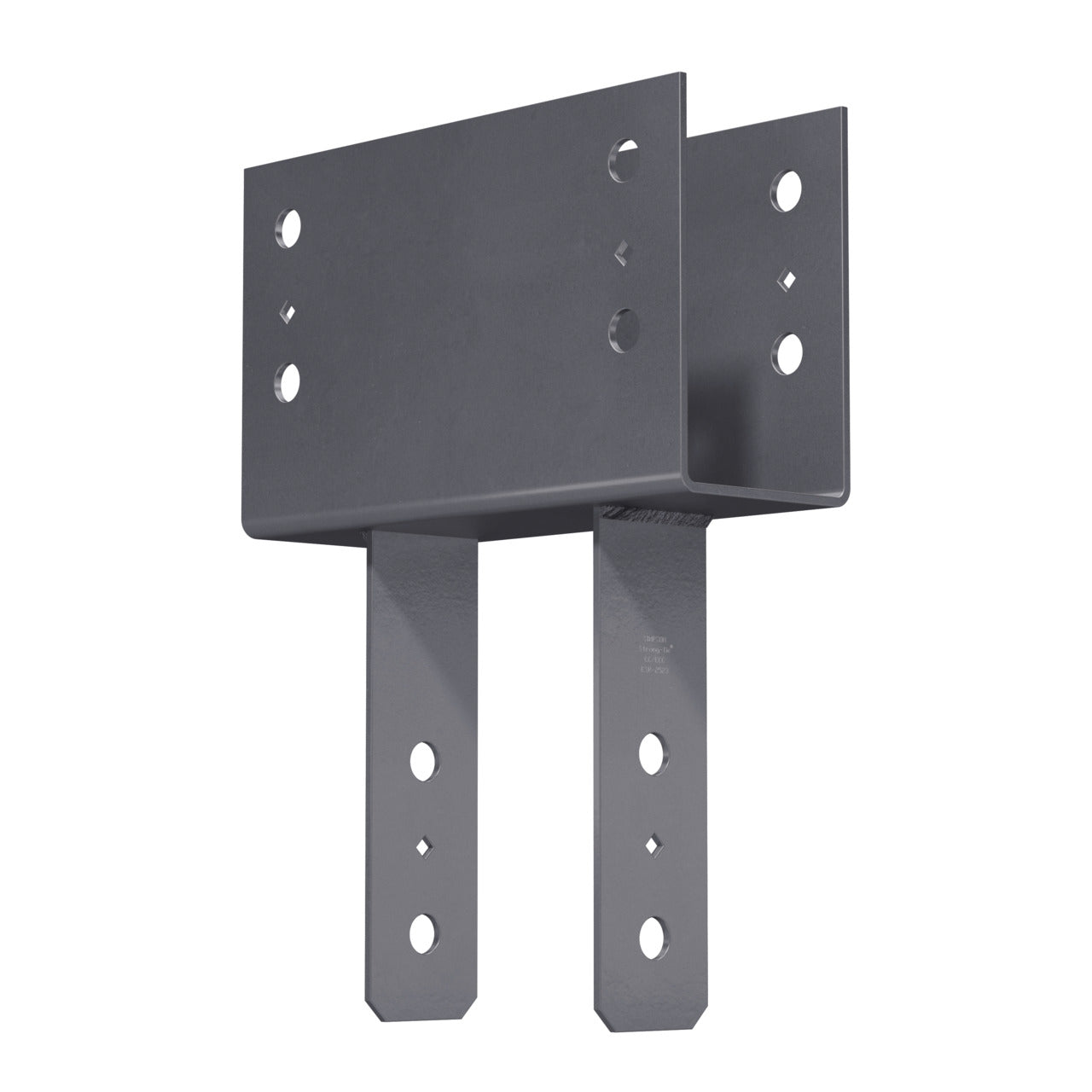

Simpson Strong-Tie CCQ88SDS25 CCQ Series 11 x 7-1/2 x 7 3 ga Gray Painted Steel Column Cap

Product Description

The Simpson Strong-Tie CCQ88SDS25 is a steel column cap designed for strong connections in column beam combinations. It utilizes Strong-Drive SDS heavy-duty connector screws for quicker installation and increases the net section area of the column compared to traditional bolts. The SDS screws offer a lower profile, enhancing the overall assembly process.

• Uses Strong-Drive SDS screws for fast and secure installation.
• Offers strong performance for heavy material bonding.
• Versatile for various application needs.

Product Highlights

This column cap provides enhanced strength and stability for structural connections in framing applications.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137CCQ88

Technical Specifications

• Load Uplift: 6785 lb
• Load Down: 51565 lb
• Gauge: 3
• Finish: Painted
• Beam Width: 7-1/2 in
• Leg Spacing: 7-1/2 in
• Fastener Size: (16) 1/4 x 2-1/2 in SDS Screws (Beam), (14) 1/4 x 2-1/2 in SDS Screws (Post)
• Nominal Product Depth: 0
