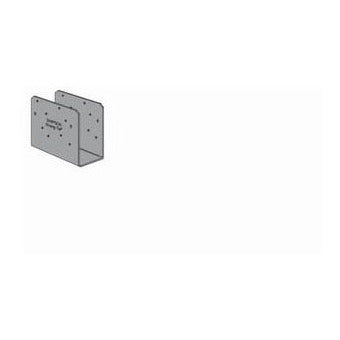

Simpson Strong-Tie CCOQ6SDS25 No Leg Column Cap 11 x 5-1/2 x 7 Uncoated Steel

Product Description

The Simpson Strong-Tie CCOQ6SDS25 is a column cap designed for use with column beam combinations. It utilizes Strong-Drive SDS heavy duty connector screws that speed up installation and enhance the strength of the connection compared to traditional bolts.

• Provides strong connections for column beams
• Compatible with 5-1/4 and 5-1/2 inch beams
• Constructed from durable uncoated steel

Product Highlights

This column cap features a low-profile design, which allows for a cleaner installation process. The use of SDS screws ensures quick setup and reliable performance over time.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: CCOQ6SDS25

Technical Specifications

• Material: Steel
• Gauge: 7
• Finish: Uncoated
• Beam Width: 5-1/4, 5-1/2 inches
• Fastener Size: (16) 1/4 inch x 2-1/2 inch SDS (Beam), (14) 1/4 inch x 2-1/2 inch SDS (Post)
• Load Uplift: 5370 lb
• Load Down: 28585 lb
