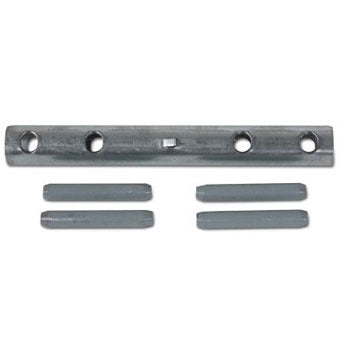

Simpson Strong-Tie CBT2ZKT Concealed Beam Tie 10 12 ga ZMAX Coated Carbon Steel

Product Description

The Simpson Strong-Tie CBT2ZKT is a concealed beam tie made from twelve gauge ZMAX coated carbon steel. It connects horizontal beams to vertical posts, ensuring a solid structural path to the foundation. This product is engineered for ease of installation with a cylindrical design that uses a standard drill bit.

• Designed for connecting beams to posts of various sizes.
• Includes required dowel pins for secure attachment.
• Flattened sides serve as a template for correct alignment during installation.

Product Highlights

The CBT2ZKT offers structural reliability while remaining largely hidden from view, which can improve the aesthetics of your construction. This product is compatible with other components in the concealed connector system, providing a robust framework for your projects.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: CBT2ZKT
• Part Number: 137CBT2ZKT

Technical Specifications

• Gauge: 12
• Finish: ZMAX Coated
• Beam Width: 4 x 6 inches
• Maximum Load: DF/SP Allowable Loads - Continuous Beam: Uplift (160) 1515 lb, Lateral (160) 550 lb, Down 5795 lb; End of Beam: Uplift (160) 1515 lb, Lateral (160) 550 lb, Down 5795 lb
• Fastener Size: 1/2 x 3-1/4 in (Dowel)
• Nominal Product Depth: 0
