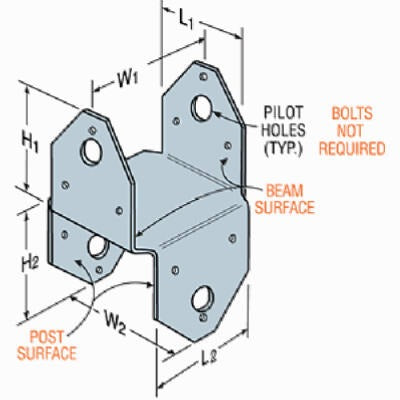

Simpson Strong Tie BC4Z-R 4x4 Post Cap Base Z-max

Product Description

The SIMPSON STRONG TIE BC4Z-R is an 18-gauge galvanized steel post cap and base connector designed to create a secure structural connection between 4x4 posts and beams. Sold in a package of 20 units, it is intended for residential and light commercial framing applications where post-to-beam load transfer is required. The BC4Z-R eliminates end-grain nailing, which significantly reduces the risk of wood splitting at the post top. Installation requires 12 nails total across both bearing surfaces. Licensed contractors, framers, and deck builders install this hardware as part of code-compliant structural assemblies.

The BC4Z-R is suited for deck construction, pergolas, outdoor pavilions, and other wood-framed structures where a post cap or base connection is needed at 4x4 nominal lumber. The Z-Max coating provides enhanced corrosion resistance compared to standard G90 galvanizing, making it appropriate for treated lumber applications and exterior environments subject to moisture exposure. It is packaged in quantities of 20, supporting both single-job and multi-post installations efficiently.

Key Features

• Constructed from 18-gauge galvanized steel with Z-Max corrosion-resistant coating
• Eliminates end-grain nailing to reduce wood splitting risk at post tops
• Requires 12 nails total for a complete, secure installation across both surfaces
• Designed for 4x4 nominal post size
• Packaged in quantities of 20 units per package
• Suited for exterior and treated-lumber environments

Compatibility

Designed as an OEM-style structural connector for use with 4x4 nominal lumber in residential and light commercial wood-framed deck and structural post applications.

Installation Notes

Installation is performed by licensed framers, carpenters, or deck builders following applicable building codes, including IBC and IRC fastener and connector requirements. Verify post alignment and plumb before driving nails into both the cap and base bearing surfaces. Use only the nail type and quantity specified on the connector label or manufacturer load tables to maintain rated capacity. Do not substitute screws or other fasteners unless explicitly listed for this connector.

Technical Specifications

• Material: 18-gauge galvanized steel with Z-Max coating
• Post Size: 4x4 nominal
• Fastener Requirement: 12 nails total
• Package Quantity: 20 per package
• Unit of Measure: EA
• Weight: 11 pounds (package)

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: BC4Z-R
