Simpson Strong-Tie BC46 BC Series 2-7/8 x 5-1/2 x 2-1/2 18 ga G90 Galvanized Steel Post Cap/Base

Product Description

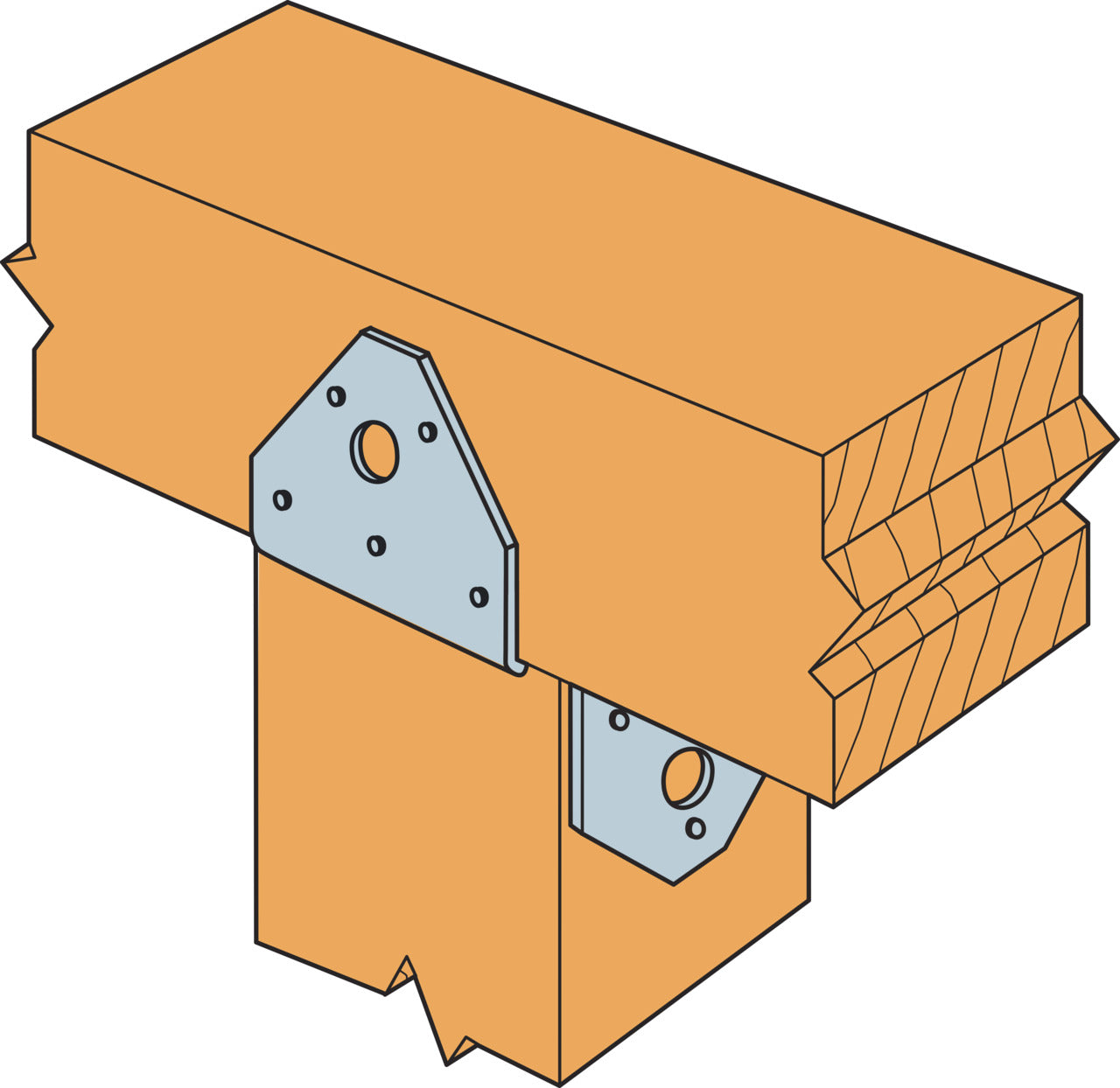

The Simpson Strong-Tie BC Series Post Cap, with MPN BC46, connects beams to posts effectively. This post cap, made from 18-gauge zinc galvanized steel, is suitable for light-duty applications. It provides a dual-purpose use for both cap and base connections.

• Constructed from durable 18-gauge galvanized steel
• Features a one-inch profile with double-ribbed corners for added strength
• Capacity to hold up to 945 pounds of uplift and 1000 pounds of lateral force

Product Highlights

Ideal for light-duty construction projects, the BC46 post cap creates a secure and stable connection between beams and posts, minimizing the necessity for extra bracing.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137BC46

Technical Specifications

• Gauge: 18
• Finish: G90 Galvanized
• Fastener Size: (12) 0.162 x 3-1/2 inches (Beam), (6) 0.162 x 3-1/2 inches (Post)
• Uplift Load: 945 pounds
• Lateral Load: 1000 pounds
