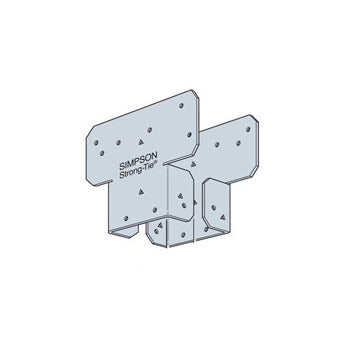

Simpson Strong-Tie AC4Z Simpson Strong-Tie AC Series 6-1/2 x 3-9/16 x 5-1/2 18 ga ZMAX Coated Steel Post Cap

Product Description

The Simpson Strong-Tie AC4Z is a universal post cap designed for versatility with framing projects. It measures six and one-half inches by three and nine-sixteenths inches by five and one-half inches and is made from eighteen gauge ZMAX coated steel. This product connects with four by or six by lumber effectively. It is suitable for various construction applications, providing reliable performance and ease of installation.

• Universal design that eliminates the need for right and left caps
• High uplift capacity of 1745 pounds
• Compatible with a range of lumber sizes

Product Highlights

The AC4Z post cap enhances structural integrity, allowing for a strong connection in framing applications.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137AC4Z

Technical Specifications

• Load Ratings: Uplift 1745 lb, Lateral 1475 lb
• Gauge: 18
• Finish: ZMAX Coated
• Fastener Size: (8) 0.162 x 3-1/2 inches (Beam), (8) 0.162 x 3-1/2 inches (Post)
