Simpson Strong-Tie ABW66Z AB Series 5-9/16 x 5-1/2 x 3 12 ga ZMAX Coated Steel Post Base

Product Description

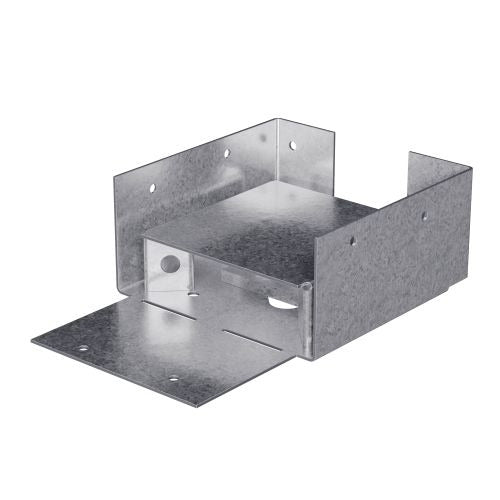

The Simpson Strong-Tie ABW66Z is a retrofit adjustable post base designed to provide a one inch standoff for the post. It is slotted for easy adjustability and can be installed using nails, Strong-Drive SD connector screws, or bolts. This post base is ideal for various applications, offering versatility and cost effectiveness while ensuring maximum uplift performance.

• Flexible positioning around the anchor bolt for precise post placement
• Helps prevent rot at the end of the post
• Meets code requirements for structural posts in various environments

Product Highlights

This product ensures the structural integrity of posts, particularly in basements or areas exposed to moisture.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• Part Number: 137ABW66Z

Technical Specifications

• Load: Uplift 1190 lb, Down (100) 12935 lb
• Finish: ZMAX Coated
• Pad Size: 6 x 6 inches
• Thickness: 12 gauge
• Fastener Size: 1/2 inch Anchor, 0.148 x 3 inches Nails
• Nominal Product Depth: 0 inches
