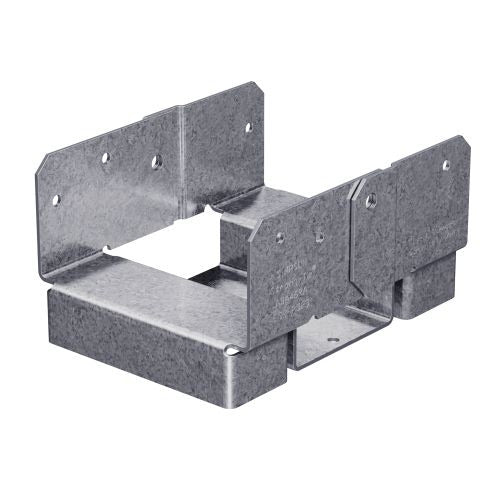

Simpson Strong-Tie ABA66RZ AB Series 5-3/16 x 6 x 2-7/8 14 ga ZMAX Coated Steel Post Base

Product Description

The Simpson Strong-Tie ABA66RZ is an adjustable post base designed to provide a secure connection for structural posts. This product features a one-inch standoff that is crucial for preventing rot at the base of the post, particularly in areas that are exposed to moisture. This post base can be installed using nails, Strong-Drive SD connector screws, or bolts, making it versatile for various applications. The slotted design allows for proper alignment and flexibility during installation, facilitating easier adjustments around anchor bolts.

• One-inch standoff to prevent rot.
• Slotted for adjustable positioning.
• Compatible with nails, screws, and bolts for installation.

Product Highlights

This post base supports an uplift load capacity of eight hundred fifty pounds, making it effective for both residential and commercial constructions.

Product Information

Standard Information

• Brand: Simpson Strong-Tie
• MPN: ABA66RZ

Technical Specifications

• Finish: ZMAX Coated
• Pad Size: 6 x 6 inches
• Thickness: 14 ga
• Fastener Size: 5/8 inch Anchor, (8) 0.162 x 3-1/2 inch Nails
• Uplift Load Capacity: 850 lbs
• Down Load Capacity: 11,465 lbs
