Simpson Strong Tie 66T G90 T Strap Tie 14 Gauge 10 Pack

Product Description

The SIMPSON STRONG TIE 66T is a G90 galvanized T strap tie designed to reinforce T-intersections in wood framing and structural connections. Built from 14-gauge steel with a G90 hot-dip galvanized finish, this connector resists corrosion in both interior and exterior environments. Each tie measures 6 inches by 6 inches and provides reliable load transfer at beam-to-post, joist-to-beam, and similar T-junction connections. This connector is installed by general contractors, framing carpenters, and structural trade professionals as part of standard framing assemblies. It ships in a package of 10 ties.

The 66T is suited for residential and light commercial wood framing applications where T-intersection reinforcement is required. Typical uses include wall plate connections, roof framing tie points, and floor system junctions. The G90 galvanized coating makes it appropriate for covered outdoor structures, decks, and areas subject to moisture exposure where bare steel connectors would be unsuitable. No compatibility with specific model systems applies to this product type.

Key Features

• 14-gauge steel construction for structural-grade load capacity at framing intersections
• G90 galvanized finish provides corrosion resistance for interior and covered exterior use

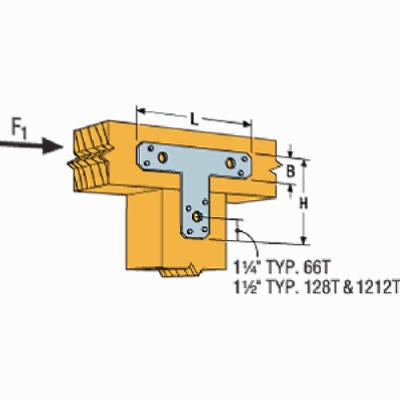

• 6 inches by 6 inches profile fits standard T-intersection framing geometry
• Compatible fastener options: eight 16D nails or three 1/2 inch bolts per connector
• Sold in a pack of 10, reducing per-unit handling on multi-point installations

Compatibility

Designed as an OEM-style structural connector for standard dimensional lumber framing assemblies at T-intersections in residential and light commercial construction.

Installation Notes

Installation is performed by licensed framing carpenters or general contractors in accordance with local building codes and applicable provisions of the IBC or IRC. Power down any adjacent mechanical systems and ensure the framing member is stable and plumb before fastening. Secure the connector using either eight 16D nails or three 1/2 inch bolts as specified in the project drawings. Do not substitute fastener type or quantity without verifying load requirements with the project engineer of record.

Technical Specifications

• Gauge: 14 gauge
• Finish: G90 galvanized
• Material: Steel
• Dimensions: 6 inches x 6 inches
• Fastener Options: Eight 16D nails or three 1/2 inch bolts
• Package Quantity: 10 per pack
• Weight: 3.1 pounds (per pack)

Standard Information

• Brand: SIMPSON STRONG TIE
• Manufacturer Part Number: 66T
