Simpson Electric F35-1-34-0 Ac Voltmeter Panel Meter

Product Description

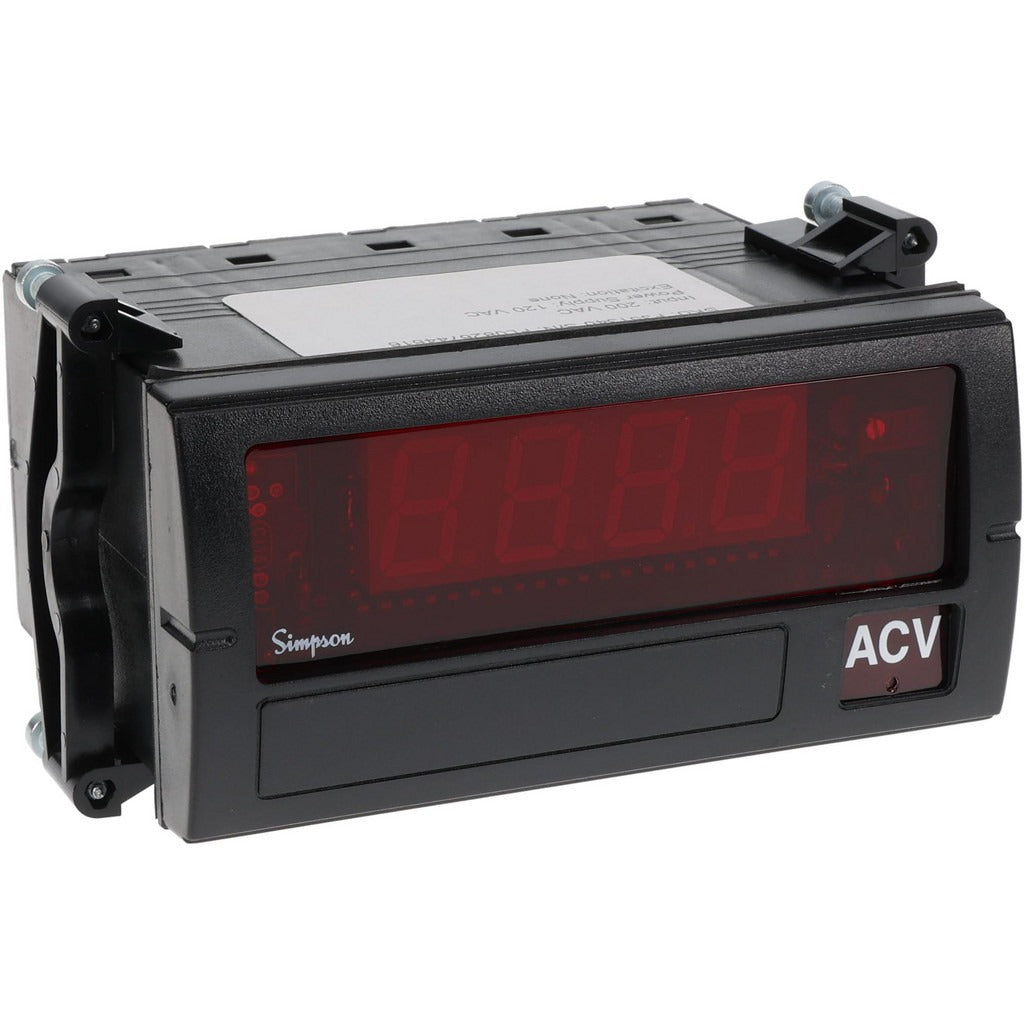

The SIMPSON ELECTRIC F35-1-34-0 is a 3-1/2 digit digital LED panel meter designed to measure AC voltage. It displays readings on a red LED readout and is built for flush or panel-mount installation in electrical enclosures, control panels, and equipment housings. The meter operates on 50/60 Hz AC systems with a maximum input of 200 VAC and an input impedance of 9.9 megohms. Electricians, panel builders, and instrumentation technicians use this type of meter to provide a continuous local voltage readout without requiring an external display device. Its compact panel-mount form factor fits standard cutouts in industrial and commercial control panels.

The F35-1-34-0 is suited for residential, commercial, and light industrial electrical panel applications where a direct-reading AC voltage indication is needed at the point of installation. Typical uses include switchboards, motor control centers, generator monitoring panels, and custom-built electrical enclosures. The 3-1/2 digit resolution provides sufficient readout precision for routine voltage monitoring tasks. This meter is appropriate for any application requiring a dedicated, always-on voltage display rather than a handheld multimeter.

Key Features

• 3-1/2 digit digital LED display for clear, direct voltage readings
• Red LED digit color for high visibility in panel environments
• Measures AC voltage up to 200 VAC at 50/60 Hz
• High input impedance of 9.9 megohms minimizes circuit loading
• Panel-mount form factor for permanent installation in enclosures

Compatibility

Designed as an OEM-style panel meter for use in electrical control panels and enclosures requiring a dedicated AC voltmeter display.

Installation Notes

Installation should be performed by a licensed electrician following applicable NEC requirements. De-energize the panel or circuit completely before cutting the panel opening or making any wiring connections. Secure the meter in the panel cutout per the manufacturer mounting instructions before connecting signal leads. Verify that the supply voltage does not exceed the rated input range of the meter prior to energizing the circuit.
