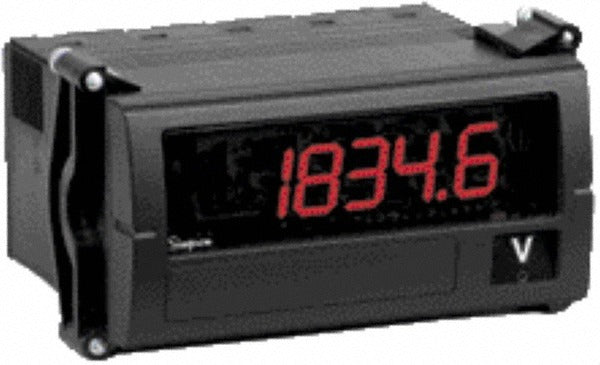

Simpson Electric F35-1-11-0 Digital Led Dc Mv Panel Meter

Product Description

The SIMPSON ELECTRIC F35-1-11-0 is a 3-1/2 digit digital LED panel meter designed to measure DC millivolt signals. It features a bright red LED display for clear readout in control panel and industrial instrumentation applications. The meter operates on 120 VAC power at 50/60 Hz and offers 100 megohms input impedance, making it suitable for high-accuracy low-level voltage measurement. This unit mounts into a panel cutout and is typically installed by electricians or instrumentation technicians configuring control systems, test benches, or process monitoring equipment.

The F35-1-11-0 is suited for residential, commercial, and light industrial control panel applications where a compact, direct-reading DC millivolt display is required. It fits standard panel meter cutouts and is commonly used in process control cabinets, test equipment enclosures, and equipment monitoring stations where continuous DC mV signal readout is needed at a glance.

Key Features

• 3-1/2 digit digital LED display for precise DC millivolt readout
• Red LED display digits for high visibility in panel environments
• Operates on 120 VAC power supply at 50/60 Hz
• 100 megohms input impedance for accurate low-level signal measurement
• Compact panel-mount form factor for integration into control enclosures

Compatibility

Designed as an OEM-style panel meter for use in standard panel meter mounting applications requiring DC millivolt measurement with a digital LED display.

Installation Notes

Installation should be performed by a licensed electrician or qualified instrumentation technician. Disconnect and lock out all power to the panel before cutting the panel opening or wiring the meter. Follow applicable NEC guidelines for panel instrumentation wiring and enclosure requirements. Verify input signal range and power supply voltage before energizing the meter.
