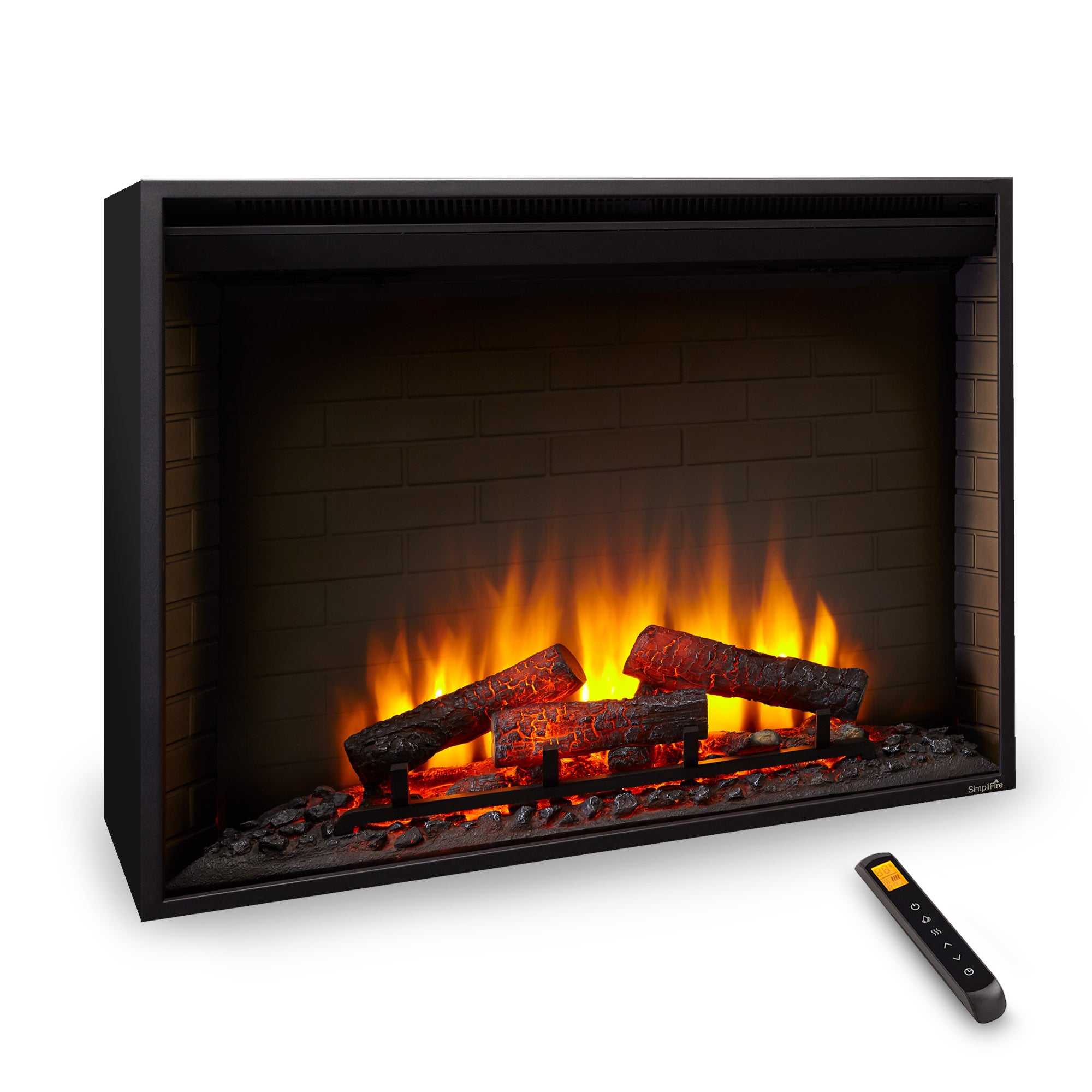

Simplifire SF-BI36-EB 36 Inch Built-in Electric Fireplace

Product Description

The SIMPLIFIRE SF-BI36-EB is a 36-inch built-in electric fireplace designed for wall-framed or masonry fireplace installation in residential settings. The unit produces up to 10,000 BTU/h when hardwired to a 240V dedicated circuit and 4,800 BTU/h on a standard 120V supply, drawing 11.7 amps at either voltage. The firebox features LED flame technology with four selectable flame effects, eliminating bulb replacement over the life of the unit. A blower is included, and thermostatic control with a programmable timer from 30 minutes up to 9 hours in 1-hour increments comes standard. A full-function multi-feature remote control is included. Installed by electricians or qualified contractors, this unit is intended as a supplemental heat source only.

The SF-BI36-EB is suited for residential living rooms, bedrooms, or finished basements where a clean, flush-mount fireplace appearance is desired. It frames into new construction walls or drops into an existing masonry firebox opening. Front-facing framing requires 38 inches wide by 11.625 inches deep. Framing height is 33.688 inches for 120V installations and 35.688 inches for 240V hardwired installations, which require a minimum of 2 inches clearance above the firebox top. Corner installation is also supported with additional framing dimensions per the installation instructions. A black front trim piece, model SF-EF36-BK, is available separately and adds a 2-inch overhang to cover drywall transitions.

Key Features

• Four LED flame effects operate independently of heat output
• Dual-voltage capability: plug-in 120V or hardwired 120V or 240V on a 15-amp dedicated circuit
• Output of 4,800 BTU/h at 120V or 10,000 BTU/h at 240V
• Large 34.25-inch by 27.25-inch clear viewing area with flush, tight finish
• Included blower with thermostatic control and 30-minute to 9-hour programmable timer
• Traditional masonry-style interior with textured log set
• Full-function remote control and front panel manual operation included

Compatibility

Designed for built-in installation into new wall-framed openings or existing masonry fireplace surrounds. Optional trim kit SF-EF36-BK is sold separately for a finished front-facing appearance.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for dedicated appliance circuits. Power down and confirm the circuit is de-energized before making any wiring connections. For 240V hardwired installations, verify a minimum 2-inch clearance above the top of the firebox is maintained. Sub-floor or pre-construction installs require additional framing height to account for finished flooring thickness; consult the installation instructions for exact framing dimensions before rough-in.

Technical Specifications

• Nominal Fireplace Size: 36 inches
• BTU Output: 4,800 BTU/h at 120V / 7,200 BTU/h mid / 10,000 BTU/h at 240V
• Wattage: 1,400 / 2,100 / 2,800 watts
• Amperage: 11.7 amps
• Voltage: 120 volts (plug-in or hardwired) / 240 volts (hardwired)
• Firebox Width: 37 inches
• Firebox Height: 31.219 inches
• Firebox Depth: 11 inches
• Viewing Area: 34.25 inches wide by 27.25 inches high
• Framing Width: 38 inches
• Framing Depth: 11.625 inches
• Framing Height at 120V: 33.688 inches
• Weight: 79 pounds
• Fuel Type: Electric
• Installation Type: Built-In
• Style: Traditional
• Blower: Included
• Connectivity: Not WiFi Compatible

Standard Information

• Brand: SIMPLIFIRE
• Manufacturer Part Number: SF-BI36-EB
