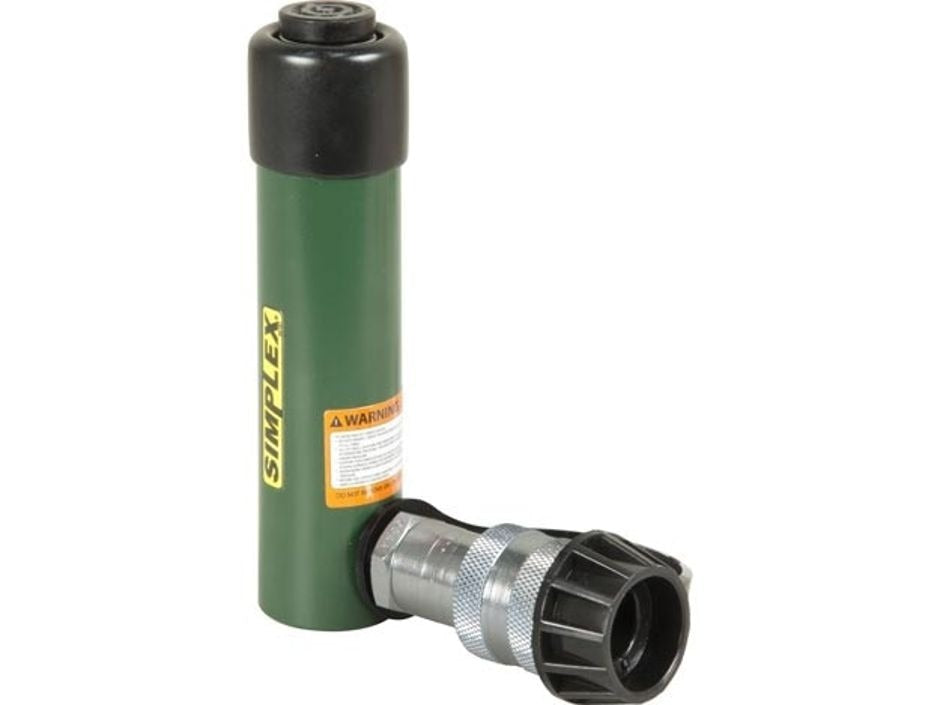

Simplex r53 Hydraulic Cylinder 5 Ton 3.13 in Stroke

Product Description

The SIMPLEX r53 is a single-acting, general purpose hydraulic cylinder rated for 5 ton (44.5 kilonewtons) of capacity with a 3.13-inch stroke. Built for demanding industrial environments, the r53 is part of the Simplex R-Series line, designed to deliver consistent force output and long service life in a wide range of push-force applications. A positive stop limits piston travel at the end of the stroke, adding a mechanical safety margin and protecting internal components. A wiper seal extends cylinder life by keeping contaminants out of the bore. This cylinder is installed and serviced by hydraulic system technicians, millwrights, and industrial maintenance professionals.

The r53 is suited for general purpose industrial applications requiring controlled, single-direction hydraulic force. Typical use cases include lifting, pressing, pushing, and fixturing operations in manufacturing, construction, and maintenance settings. The threaded collar design provides versatility in mounting and fixturing configurations, expanding the range of setups this cylinder can support across both stationary and portable hydraulic systems.

Key Features

• 5 ton (44.5 kilonewtons) rated capacity for demanding push-force tasks
• 3.13-inch stroke with a built-in positive stop to prevent over-travel
• Single-acting design returns via spring or gravity depending on setup
• Threaded collar allows flexible fixturing and mounting configurations
• Wiper seal protects internal bore and extends service life
• General purpose construction suitable for a wide range of industrial environments

Compatibility

Designed as an OEM-style general purpose hydraulic cylinder compatible with standard single-acting hydraulic hand pumps and power units using appropriate hydraulic fittings and hose connections.

Installation Notes

Installation should be performed by a qualified hydraulic technician or millwright familiar with hydraulic circuit safety practices. Depressurize and isolate the hydraulic system completely before connecting or disconnecting this cylinder. Ensure all fittings and hose connections are rated for the operating pressure of the system. Do not exceed the rated capacity or stroke limits specified for this cylinder.

Technical Specifications

• Capacity: 5 ton (44.5 kilonewtons)
• Stroke: 3.13 inches
• Action Type: Single-Acting
• Series: R-Series
• Application: General Purpose Industrial

Standard Information

• Brand: SIMPLEX
• Manufacturer Part Number: r53
