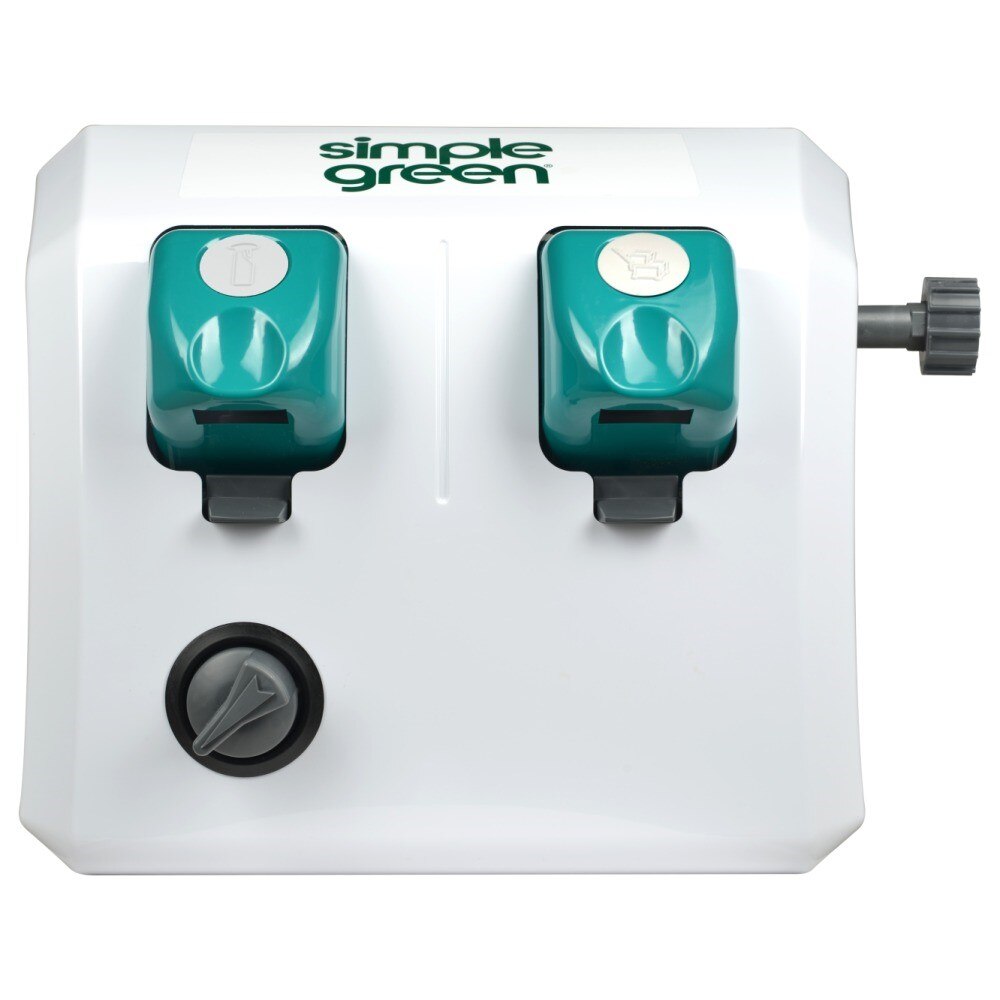

Simple Green 8950 Chemical Proportioner Dispenser

Product Description

The SIMPLE GREEN 8950 is a multi-product chemical proportioner designed for accurate, consistent dilution of concentrated cleaning solutions in commercial and institutional cleaning operations. The unit delivers four low-flow bottle fill outputs at 1 GPM and one high-flow bucket fill output at 3.5 GPM, supporting up to five separate dilution ratios simultaneously. AccuPro Pressure Regulation Technology maintains dilution accuracy despite fluctuating supply water pressure. Fourteen pre-set metering tips cover dilution ratios from 1:2.6 to 1:447, plus one customizable tip for non-standard dilutions or straight water dispensing. Licensed cleaning professionals, facilities maintenance crews, and janitorial supply contractors are the primary installers and operators of this unit.

The 8950 is suited for commercial kitchens, institutional facilities, hotels, and industrial cleaning environments where multiple concentrated cleaning chemicals must be dispensed at controlled dilutions on demand. The unit accommodates up to four concentrated cleaning product supply lines simultaneously. A 4-foot bucket fill hose with a built-in storage hook supports high-volume floor mopping and bucket-fill tasks. The lockable dispensing button allows hands-free operation during extended fill cycles, and the expansive internal workspace simplifies plumbing and pick-up tubing routing during setup or service.

Key Features

• Four 1 GPM low-flow bottle fill outputs plus one 3.5 GPM high-flow bucket fill output
• AccuPro Pressure Regulation Technology maintains accurate dilution ratios regardless of water pressure variation
• E-Gap eductors with elastomeric sleeves provide ASSE 1055-compliant backflow protection
• 14 pre-set metering tips supporting 1:2.6 to 1:447 dilution ratios plus one customizable tip
• 4-foot bucket fill hose with integrated storage hook
• Lockable dispensing button for hands-free continuous flow operation
• Tool-free maintenance and quick-mount installation

Compatibility

Designed for use with SIMPLE GREEN concentrated cleaning products and compatible with other water-based chemical concentrates requiring controlled proportioning at low- to high-flow dispensing rates.

Installation Notes

Installation should be performed by a qualified facilities technician or plumbing professional familiar with chemical dispensing systems. A water supply line with a minimum 3/8-inch inner diameter and at least 25 PSI dynamic pressure is required for proper operation. Shut off the water supply before connecting or disconnecting supply lines, and purge air from the system before placing the unit into service. Verify that discharge hoses are unobstructed prior to operation, as restricted discharge will cause water to exit through eductor vents.

Technical Specifications

• Low-Flow Output: 1 GPM (4 bottle fill outlets)
• High-Flow Output: 3.5 GPM (1 bucket fill outlet)
• Dilution Range: 1:2.6 to 1:447
• Pre-Set Metering Tips Included: 14
• Customizable Tips Included: 1
• Bucket Fill Hose Length: 4 feet
• Minimum Supply Pressure: 25 psi
• Certification: ASSE 1055 Approved
• Length: 16 inches
• Width: 13.25 inches
• Height: 8.125 inches
• Weight: 6 pounds
• UPC: 043318004902

Standard Information

• Brand: SIMPLE GREEN
• Manufacturer Part Number: 8950
