Simonds 73319500 American Pattern 8 inches Half Round Sec

Product Description

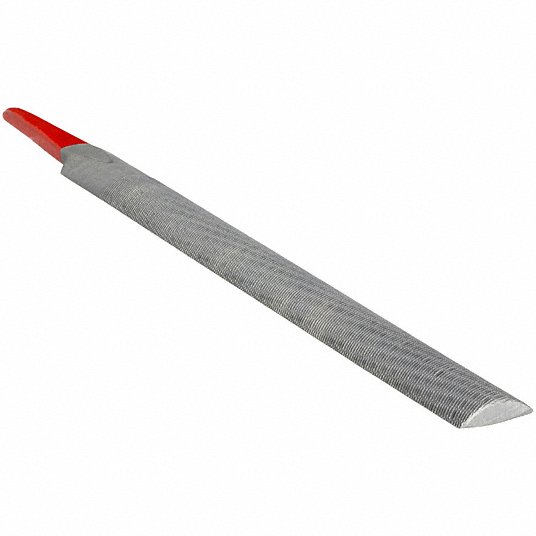

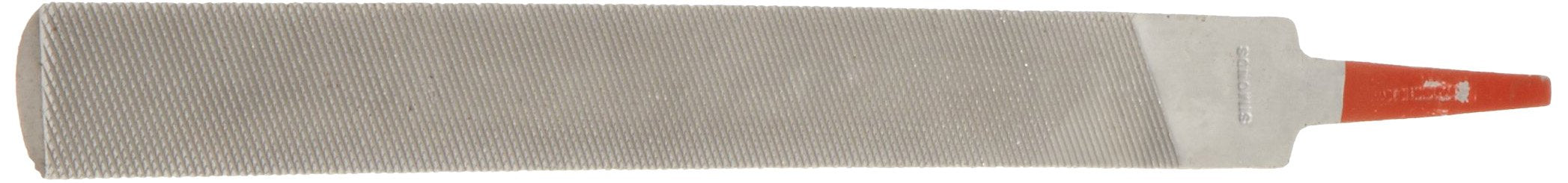

The SIMONDS 73319500 American Pattern half-round file is designed for material removal and shaping. Featuring an 8" length, it has one flat side with double-cut, variable-pitch American pattern teeth for use on flat surfaces and one curved side with spiral-cut teeth for use on curved surfaces. It is suitable for use on materials such as aluminum, brass, bronze, steel, and tin.

• Half-round shape has one round side and one flat side for use on curved and flat surfaces
• Double-cut, variable-pitch teeth on flat side for rapid removal of material

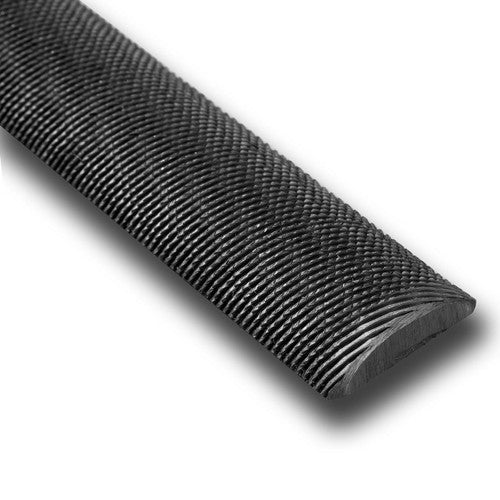

• Spiral-cut teeth on round side for fast cutting action with a smooth finish

Product Highlights

This half-round file features a double-cut American pattern and is ideal for rounding out holes, corners, and crevices.

Product Information

Standard Information

• Brand: SIMONDS
• Manufacturer Part Number: 73319500
• Country of Origin: HN

Technical Specifications

• MPN: 73319500
• UPCCode: 072660617927
• Manufacturer: Simonds
• Brand: Simonds
• UOM: Each
• ProductCategory: Hand Tools
• Country: HN
• Shape: Half-Round
• Cut Type: Double Cut
• Pattern: American Pattern
• Length: 8"
• Width: 3/4"
• Thickness: 7/32"
• Size: 8-Inch
• Individual Length (Inch): 8"
• Individual Length (Decimal Inch): 8"
• Individual Width (Inch): 3/4"
• Individual Width (Decimal Inch): 0.75"
• Individual Height/Thickness (Inch): 7/32"
• Individual Height/Thickness (Decimal Inch): 0.21875"
• File Type: Half Round File
• Cut: Second Cut
• Product Type: American-Pattern File
• Coarseness: Second
• Includes Handle: No
• File Coarseness: Second Cut
• File Style: American Pattern File
• Profile Shape: Half Round
• Face Cut Style: Double-Cut
• Edge Cut Style: Safe
• File Length without Tang: 8 in
• File Width: 3/4 in
• Number of Cut Edges: 2
• Rigidity: Rigid
• Teeth per Inch: 25, 29, 34
• File Body Finish: Natural
• Container Type: Box
• Material Applications: Aluminum, Brass, Bronze, Steel, Tin
• Application: General Purpose
• Handle Design: None
• Finish: Natural
• Edges: Un Cut
• Profile Name: Half Round
• Insulated: No
