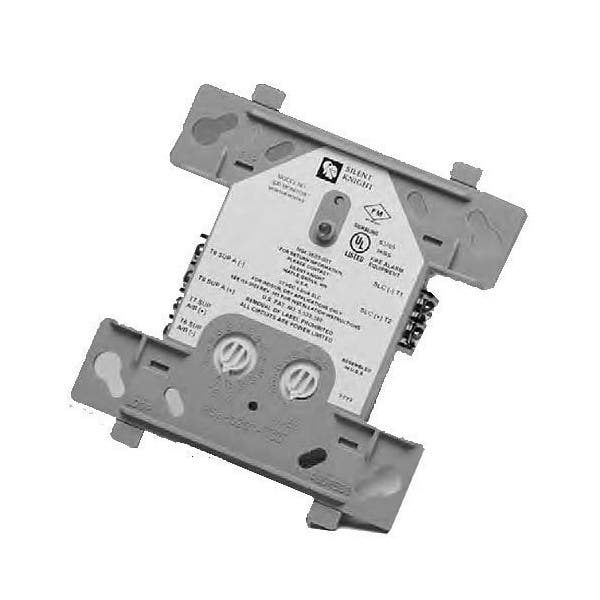

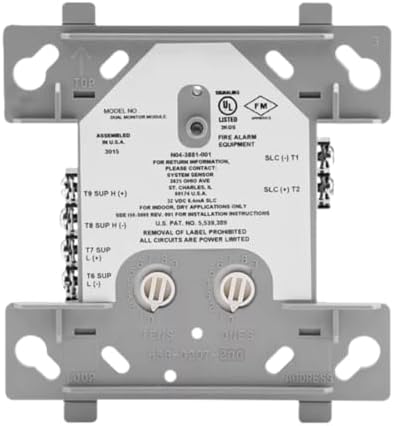

Silent Knight SK-MONITOR addressable input monitor module

Product Description

The Silent Knight SK-MONITOR is an addressable monitor module for use with Silent Knight IntelliKnight series fire alarm control panels (FACPs). It is intended for use in intelligent, two-wire systems, where individual address of each module is selected using the built-in rotary switches.

• Single contact monitor
• Support for Class A and Class B wiring
• Fully supervised

Product Highlights

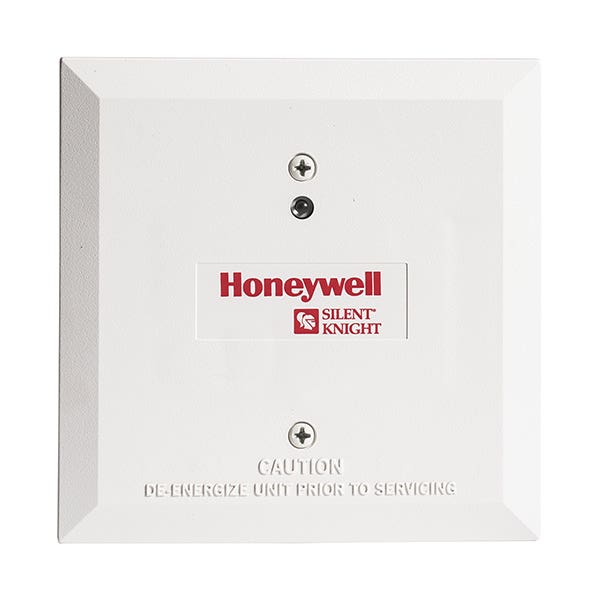

The SK-Monitor features a panel-controlled status LED, an attractive ivory cover plate, rotary address switches, and SEMS screws for easy wiring. It is also UL Listed.

Product Information

Standard Information

• Brand: Silent Knight
• Manufacturer Part Number: SK-MONITOR
• Country of Origin: Mexico

Technical Specifications

• ADI Part Number: SK-MONITOR
• Brand Name: Silent Knight by Honeywell
• Manufacturer: Honeywell International, Inc
• Manufacturer Part Number: SK-MONITOR
• Product Model: SK-Monitor
• Product Name: SK-Monitor Addressable Input Monitor Module
• Product Type: Addressable Input Module
• Device Supported: Control Panel
• Maximum Operating Temperature: 120.2°F (49°C)
• Minimum Operating Temperature: 32°F (0°C)
• Depth: 1.3"
• Height: 4.5"
• Width: 4"
• Input Voltage: 32V DC
• Compatibility: IntelliKnight addressable fire alarm control panels 5700 5808 5820XL 5820XL-EVS
