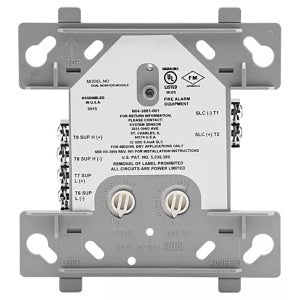

Silent Knight SK-MONITOR-2 Addressable Dual Input Monitor Module

Product Description

The Silent Knight SK-MONITOR-2 module monitors two separate Class B circuits simultaneously, which is ideal for waterflow tamper and flow switch monitoring. The SK-MONITOR-2 is an addressable monitor module with two initiating circuits for use with Honeywell Silent Knight series fire alarm control panels (FACPs). It acts as an interface to contact devices, such as waterflow switches and pull stations.

• Monitor two circuits with unique addresses simultaneously
• Rotary address switches for fast installation
• Support for Class B Wiring

Product Highlights

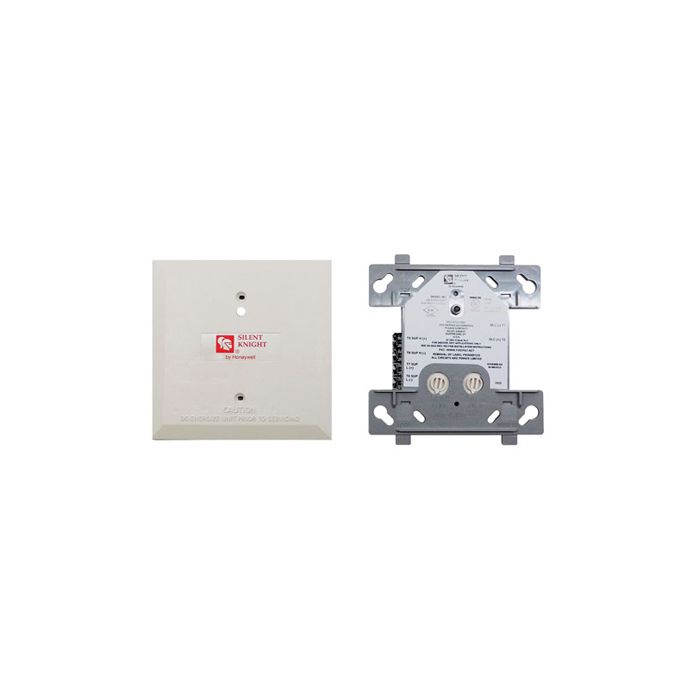

The SK-MONITOR-2 mounts directly into a 4" square electrical box with a minimum depth of 2-1/8".

Product Information

Standard Information

• Brand: Silent Knight
• Manufacturer Part Number: SK-MONITOR-2
• Country of Origin: Mexico

Technical Specifications

• ADI Part Number: SK-MONITOR2
• Brand Name: Silent Knight by Honeywell
• Manufacturer: Honeywell International, Inc
• Manufacturer Part Number: SK-MONITOR-2
• Product Model: SK-MONITOR-2
• Product Name: SK-Monitor-2 Addressable Dual Input Monitor Module
• Product Type: Addressable Monitor Module
• Device Supported: Fire Alarm, Fire Panel, Pull Station, Smoke Detector, Switch, Waterflow Switch
• Depth: 1.3"
• Height: 4.5"
• Width: 4"
• Compatibility: Honeywell SilentKnight Addressable Fire Alarm Control Panels: 6820 6820EVS 6808 6700 Honeywell IntelliKnight Addressable Fire Alarm Control Panels: 5700 5808 5820XL 5820XL-EVS
• Country of Origin: MX
• Features: Monitored, Tamper Switch
